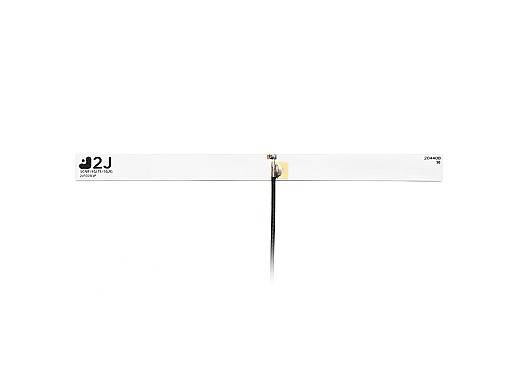

2J Antennas 2JF0783P-018MC137B-UFL - 5GNR antenna
2J Antennas 2JF0783P-018MC137B-UFL - 5GNR antenna
2J Antennas 2JF0783P-018MC137B-UFL - 5GNR antenna
2J Antennas 2JF0783P-018MC137B-UFL - 5GNR antenna

2J Antennas 2JF0783P-018MC137B-UFL - 5GNR antenna

Antenna typeFPC
Antenna connector typeIPEX
TechnologyLTEUMTSNB-IoT5G - Sub-6 GHzGSM
MountingAdhesive
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JF0783P-018MC137B-UFL
Producer code
5900000820927
Product length in millimetersProduct length in millimeters
125
Impedance
50 Ohm
Product width in millimetersProduct width in millimeters
9
Temperature rangeTemperature range
-40...+85°C
Antenna typeAntenna type
FPC
Antenna connector typeAntenna connector type
IPEX
Product height in millimetresProduct height in millimetres
0.2
TechnologyTechnology
LTE
UMTS
NB-IoT
5G - Sub-6 GHz
GSM
Cable length (in milimeters)
180
MountingMounting
Adhesive
PositioningPositioning
Internal
Radiation pattern
Omni-directional
Frequency
617 - 960 MHz
1427 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
Max. VSWR
3,2
Max. gain
6,3 dBi
Aplications
Industrial IoT devices
Wearables
Safety
Industrial automation
Commercial IoT devices
Motoryzacja
Transport
Robotics
Drones
Polarisation
Linear
Search

2J Antennas 2JF0783P-018MC137B-UFL

2JF0783P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for 5GNR and supporting 4G, 3G, 2G and LPWA standards as well. The antenna supports frequencies from 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz ranges. The product dimensions are 125 × 9 x 0.2 mm, cable 180 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
