2J Antennas 2JE71 - 5G antenna

2J Antennas 2JE71 - 5G antenna

Technology5G - Sub-6 GHzLTEUMTSGSMNB-IoT
MountingSMD
Antenna typeFiberglass
Antenna connector typeSMD
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
Find out in which store you can check the product and buy it right away
2J Antennas 2JE71 - 5G antenna
2J Antennas 2JE71 - 5G antenna
uniwersalny
Safe shopping
Compare
Product Data Sheet - 2JE71
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JE71
Producer code
5900000785721
TechnologyTechnology
5G - Sub-6 GHz
LTE
UMTS
GSM
NB-IoT
MountingMounting
SMD
Antenna typeAntenna type
Fiberglass
Antenna connector typeAntenna connector type
SMD
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
40More
Długość towaru w centymetrach
Product width in millimetersProduct width in millimeters
8
Product height in millimetresProduct height in millimetres
3
Temperature rangeTemperature range
-40...+105°C
Frequency
617 - 960 MHz
1427 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
Max. VSWR
3,5
Max. gain
3,1 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2JE71

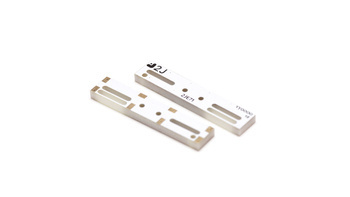

2JE71 is an embedded, surface-mounted, rigid fiberglass antenna from 2J Antennas, optimized for 5G and supporting 4G, 3G, 2G and LPWA standards. The antenna supports frequencies from 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz ranges. The product dimensions are 40 × 8 × 3 mm. The operating temperature range of the antenna is -40...+105°C.
