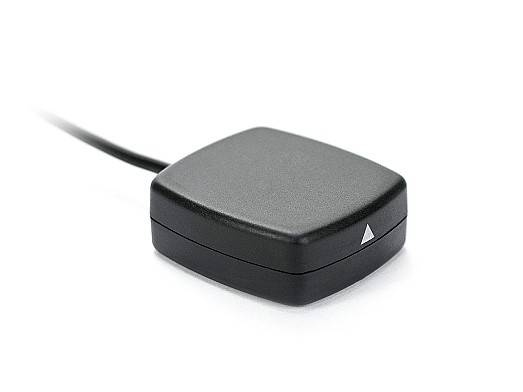

2J Antennas 2J4D01MPCF-300LL100-C20GST - GNSS antenna

2J Antennas 2J4D01MPCF-300LL100-C20GST - GNSS antenna

Antenna connector typeSMA male
Cable length (in milimeters)3000
MountingAdhesiveMagnetic
TechnologyGNSS
PositioningExternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2J4D01MPCF
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2J4D01MPCF-300LL100-C20GST
Producer code
5900000821108
Antenna connector typeAntenna connector type
SMA male
Cable length (in milimeters)
3000
MountingMounting
Adhesive
Magnetic
TechnologyTechnology
GNSS
PositioningPositioning
External
Product length in millimetersProduct length in millimeters
41
Product width in millimetersProduct width in millimeters
34
Product height in millimetresProduct height in millimetres
14.5
Ingress ProtectionIngress Protection
IP67
Temperature rangeTemperature range
-40...+85°C
Frequency
1561 - 1606 MHz
Radiation pattern
Hemispherical
Polarisation
RHCP
Max. gain
28 dBi
Impedance
50 Ohm
Search

2J Antennas 2J4D01MPCF-300LL100-C20GST

2J4D01MPCF is an external, magnetic/adhesive-mounted antenna from 2J Antennas, optimized for GNSS. The antenna supports frequencies from 1561-1606 MHz bands. The product dimensions are 41 x 34 x 13.5/14.5 mm, cable 300 cm with a male SMA connector. Ingress protection: IP67. The operating temperature range of the antenna is -40...+85°C.
