2J Antennas 2J4715B-868-TH19-300LL100-C20GST - ISM antenna
2J Antennas 2J4715B-868-TH19-300LL100-C20GST - ISM antenna
2J Antennas 2J4715B-868-TH19-300LL100-C20GST - ISM antenna
2J Antennas 2J4715B-868-TH19-300LL100-C20GST - ISM antenna

2J Antennas 2J4715B-868-TH19-300LL100-C20GST - ISM antenna

Antenna connector typeSMA male
Cable length (in milimeters)3000
MountingScrew
TechnologyISMIEEE 802.15.4LoRa
PositioningExternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2J4715B-868
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2J4715B-868-TH19-300LL100-C20GST
Producer code
5900000821146
Antenna connector typeAntenna connector type
SMA male
Cable length (in milimeters)
3000
MountingMounting
Screw
TechnologyTechnology
ISM
IEEE 802.15.4
LoRa
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
17.5
Product diameter in millimetresProduct diameter in millimetres
52
Ingress ProtectionIngress Protection
IP69K
Temperature rangeTemperature range
-40...+85°C
Frequency
863 - 870 MHz
Radiation pattern
Omni-directional
Polarisation
Linear
Max. VSWR
1,2
Max. gain
2,6 dBi
Impedance
50 Ohm
Search

2J Antennas 2J4715B-868-TH19-300LL100-C20GST

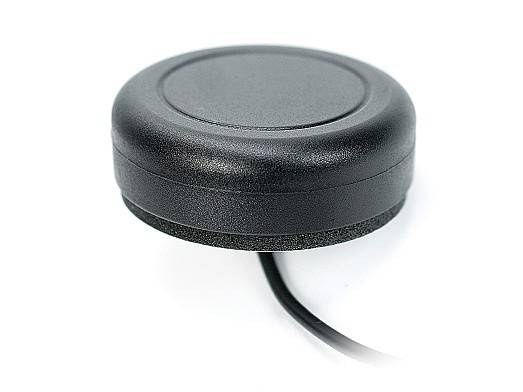

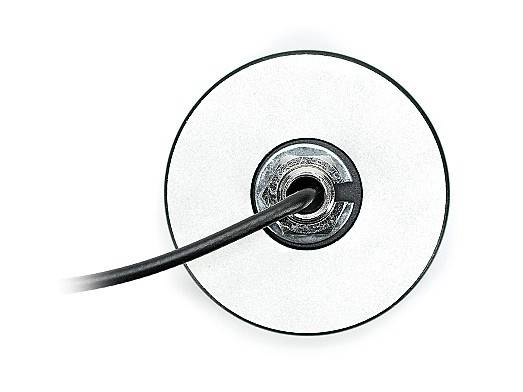

2J4715B-868 is an external, screw-mounted antenna from 2J Antennas, optimized for ISM as well as supporting ZigBee, SigFox and LoRa standards. The antenna supports frequencies from 863-870 MHz bands. The product dimensions are Φ 52 x 17.5 mm, with a 3000 mm cable and SMA male-type connector. Ingress protection: IP69K. The operating temperature range of the antenna is -40...+85°C.
