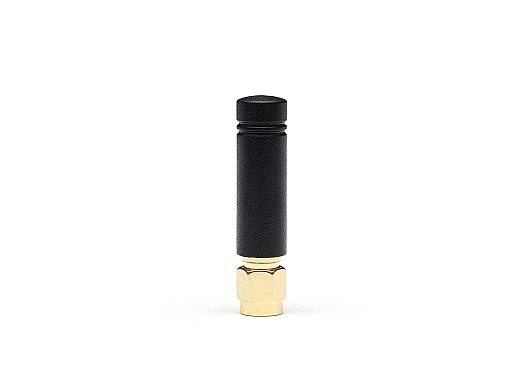

2J Antennas 2J0C15-868-C885G - ISM antenna
2J Antennas 2J0C15-868-C885G - ISM antenna
2J Antennas 2J0C15-868-C885G - ISM antenna

2J Antennas 2J0C15-868-C885G - ISM antenna

Antenna connector typeSMA male
MountingConnector
PositioningExternal
excl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Symbol
2J0C15-868-C885G
Producer code
5900000821122
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Connector
TechnologyTechnology
ISM
IEEE 802.15.4
LoRa
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
38
Product diameter in millimetresProduct diameter in millimetres
9
Temperature rangeTemperature range
-40...+85°C
Frequency
863 - 870 MHz
Radiation pattern
Omni-directional
Max. VSWR
2,2
Polarisation
Linear
Max. gain
2,5 dBi
Impedance
50 Ohm
Search

2J Antennas 2J0C15-868-C885G

2J0C15-868-C885G is an external, connector-mounted antenna from 2J Antennas, optimized for ISM as well as supporting ZigBee, SigFox and LoRa standards. The antenna supports frequencies from 863-870 MHz bands. The product dimensions are 38 × Φ 9 mm. SMA male-type connector. The operating temperature range of the antenna is -40...+85°C.
