2J Antennas 2J0C15-868-C884G - ISM antenna
2J Antennas 2J0C15-868-C884G - ISM antenna
2J Antennas 2J0C15-868-C884G - ISM antenna
2J Antennas 2J0C15-868-C884G - ISM antenna
2J Antennas 2J0C15-868-C884G - ISM antenna
2J Antennas 2J0C15-868-C884G - ISM antenna

2J Antennas 2J0C15-868-C884G - ISM antenna

Antenna connector typeSMA male
MountingConnector
TechnologyISMIEEE 802.15.4LoRa
PositioningExternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2J0C15-868-C884G
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2J0C15-868-C884G
Producer code
5900000778396
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Connector
TechnologyTechnology
ISM
IEEE 802.15.4
LoRa
PositioningPositioning
External
Product width in millimetersProduct width in millimeters
19.1
Product height in millimetresProduct height in millimetres
34
Product diameter in millimetresProduct diameter in millimetres
9
Temperature rangeTemperature range
-40...+85°C
Frequency
863 - 870 MHz
Radiation pattern
Omni-directional
Max. VSWR
1,7
Polarisation
Linear
Max. gain
2,2 dBi
Impedance
50 Ohm
Search

2J Antennas 2J0C15-868-C884G

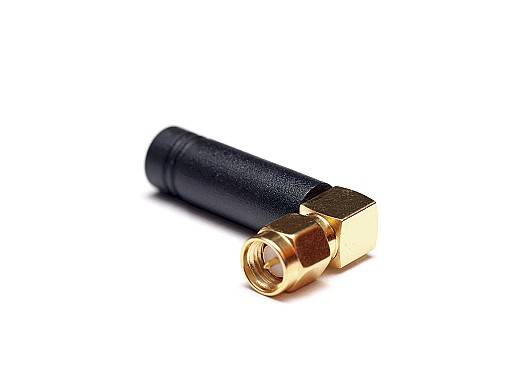

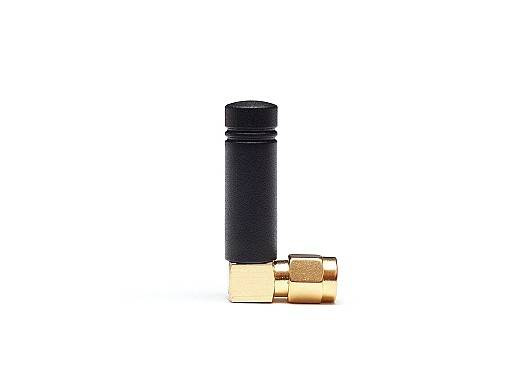

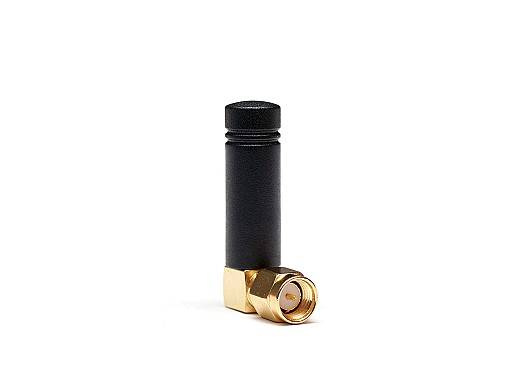

2J0C15-868-C884G is an external, connector-mounted antenna from 2J Antennas, optimized for ISM as well as supporting ZigBee, SigFox and LoRa standards. The antenna supports frequencies from 863-870 MHz bands. The product dimensions are 34 × 19.1 × Φ 9 mm. SMA male-type connector. The operating temperature range of the antenna is -40...+85°C.
