Powertip PH102600T015-IBC04 - HDMI display
Powertip PH102600T015-IBC04 - HDMI display
Powertip PH102600T015-IBC04 - HDMI display
Powertip PH102600T015-IBC04 - HDMI display

Powertip PH102600T015-IBC04 - HDMI display

MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWSVGA
Resolution (px)1024 x 600
Touch panel typeCTP-GG
Luminance in cd/m2500
Controller (IC)EK79001E+EK73215B
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH102600T015-IBC04
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH102600T015-IBC04
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Graphics display resolution standardGraphics display resolution standard
WSVGA
Resolution (px)Resolution (px)
1024 x 600
Aspect ratio
17:10
Touch panel typeTouch panel type
CTP-GG
Luminance in cd/m2Luminance in cd/m2
500
Controller (IC)Controller (IC)
EK79001E+EK73215B
Video interfaceVideo interface
HDMI
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
5V
Lens thickness
0,7 mm
Touch panel controller (IC)Touch panel controller (IC)
Hycon HY4635
Touch panel interface
I2C
Search

Powertip PH102600T015-IBC04

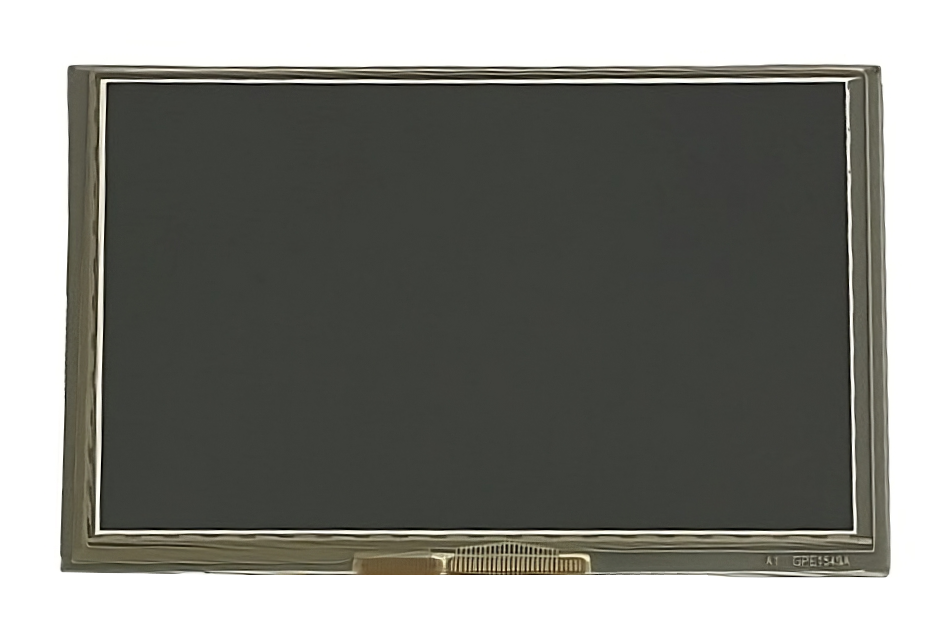

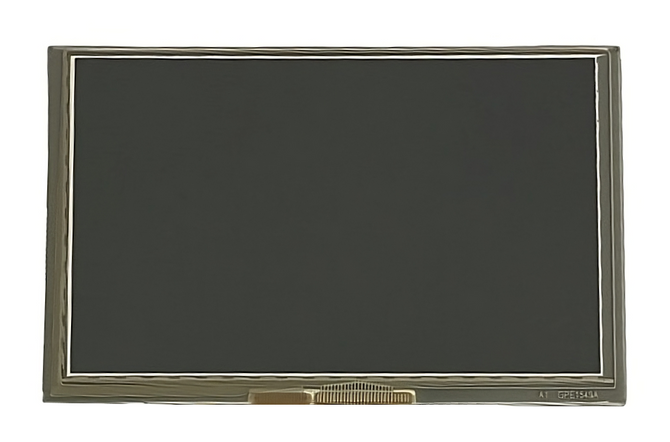

TFT display with 1024 x 600 WSVGA resolution, 7" diagonal, with HDMI video interface and capacitive touch screen (CTP-GG), 0.7 mm lens thickness. Brightness: 500. operating temperature range -20...+70°C. I2C Touch panel interface.

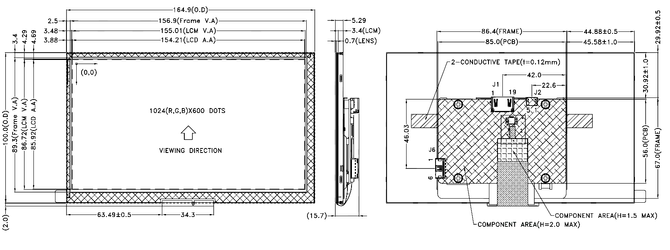

The photograph is for illustrative purposes only. To see the final product, check the drawing in the gallery or download the documentation.
