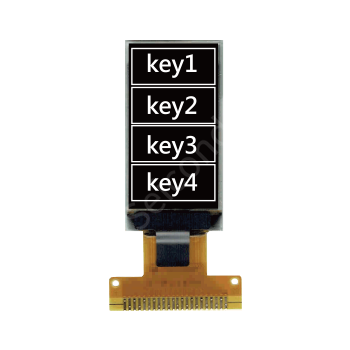

WiseChip 0.96” OLED Display

Touch OLED display, designed by WiseChip Semiconductor Inc. White color.

• Diagonal Size: 0.96”
• Pixel No.: 64 × 128
• Color: White
• Module Size (mm): 14.00 x 67.00 x 1.40
• Panel Size (mm): 14.00 × 28.00 × 1.20
• Active Area (mm): 10.86 × 21.74
• Pixel Pitch (mm): 0.18 × 0.18 (141PPI)
• Interface: 4-SPI, I2C
• Functions: 1Dimension Slide Gestures, Single Tap, Double Tap, Long Tap

WiseChip, a leading innovator of PMOLED (Organic Light-Emitting Diode) technology

• High Contrast Ratio(10000：1)
• Free Viewing Angle
• Fast Response Time (≦ 10μs)
• Thinner & Lighter & Durable
• Wide Temperature Range (-40°C~85°C)
• No need of backlight, self emitting
• Apply to most products from any area
• Trend of Displays
• Leading the green vision
