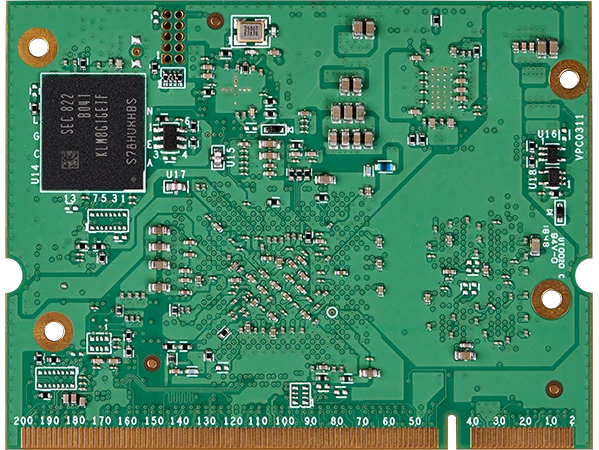

Variscite VAR-SOM-MX8X - SoM module
Variscite VAR-SOM-MX8X - SoM module
Variscite VAR-SOM-MX8X - SoM module
Variscite VAR-SOM-MX8X - SoM module

Variscite VAR-SOM-MX8X - SoM module

TechnologyBT 5.2WiFi 5Ethernet Cat5e Dual
ProcessorNXP iMX 8X
RAM memory1 GB2 GB4 GB
eMMC memory8 GB16 GB32 GB64 GB128 GB
Product length in millimeters67.6
Product width in millimeters51.6
Operating systemAndroidLinux
Longevityuntil 2035
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - VAR-SOM-MX8X
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Variscite
Symbol
VAR-SOM-MX8X
Series
VAR-SOM
TechnologyTechnology
BT 5.2
WiFi 5
Ethernet Cat5e Dual
ProcessorProcessor
NXP iMX 8X
CPU clocking (max)CPU clocking (max)
1.2 GHz
Number of cores
4
RAM memoryRAM memory
1 GB
2 GB
4 GB
eMMC memoryeMMC memory
8 GB
16 GB
32 GB
64 GB
128 GB
Product length in millimetersProduct length in millimeters
67.6
Product width in millimetersProduct width in millimeters
51.6
UART interfaces
6
I2C interfaces
6
SPI interfaces
4
USB interfaces
3.0/2.0 x 1
1x 2.0
Operating systemOperating system
Android
Linux
Temperature rangeTemperature range
-25...+85°C
-40...+85°C
VoltageVoltage
3.3V
LongevityLongevity
until 2035
Search

Variscite VAR-SOM-MX8X

A high-performance yet power-optimized platform, the VAR-SOM-MX8X supports NXP’s i.MX 8X 1.2GHz Quad Cortex™-A35 processor plus Cortex-M4F real-time co-processor. It provides built-in safety features, highly integrated multimedia with 4K support and efficient power/performance architecture. In addition, the SoM supports 4K H.265 decoding,1080p H.264 encoding and decoding, DSI/LVDS, LCD, dual GbE, Wi-Fi/BT, CAN/CAN-FD, USB3.

The parameters available in the configurator define the SoM's configuration options. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
