Variscite VAR-SOM-MX8X Evaluation Kit w/ Linux - evaluation board
Variscite VAR-SOM-MX8X Evaluation Kit w/ Linux - evaluation board
Variscite VAR-SOM-MX8X Evaluation Kit w/ Linux - evaluation board
Variscite VAR-SOM-MX8X Evaluation Kit w/ Linux - evaluation board

Variscite VAR-SOM-MX8X Evaluation Kit w/ Linux - evaluation board

TechnologyBT 5.2WiFi 5Ethernet Cat5e Dual
Product width in millimeters51.6
Product length in millimeters67.6
ProcessorNXP iMX 8X
RAM memory2 GB
Operating systemLinux
eMMC memory16 GB
Evaluation boards displayYes
Longevityuntil 2035
Size
uniwersalny
excl. VAT
2 181,32 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - VAR-SOM-MX8X
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Variscite
Symbol
VAR-DVK-MX8X_LO
Producer code
5900000732695
Series
VAR-SOM
TechnologyTechnology
BT 5.2
WiFi 5
Ethernet Cat5e Dual
VoltageVoltage
3.3V
Product width in millimetersProduct width in millimeters
51.6
CPU clocking (max)CPU clocking (max)
1.2 GHz
Product length in millimetersProduct length in millimeters
67.6
Temperature rangeTemperature range
-25...+85°C
Number of cores
4
ProcessorProcessor
NXP iMX 8X
RAM memoryRAM memory
2 GB
Operating systemOperating system
Linux
eMMC memoryeMMC memory
16 GB
UART interfaces
6
I2C interfaces
6
SPI interfaces
4
USB interfaces
3.0/2.0 x 1
1x 2.0
Evaluation boards displayEvaluation boards display
Yes
LongevityLongevity
until 2035
Search

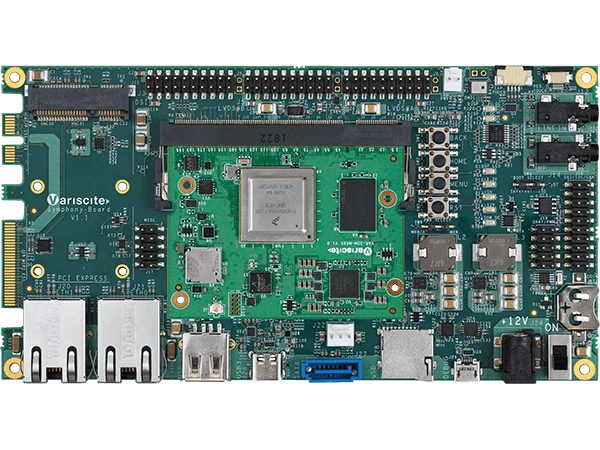

Variscite VAR-SOM-MX8X Evaluation Kit w/ Linux

A high-performance yet power-optimized platform, the VAR-SOM-MX8X supports NXP’s i.MX 8X 1.2GHz Quad Cortex™-A35 processor plus Cortex-M4F real-time co-processor. It provides built-in safety features, highly integrated multimedia with 4K support and efficient power/performance architecture. In addition, the SoM supports 4K H.265 decoding,1080p H.264 encoding and decoding, DSI/LVDS, LCD, dual GbE, Wi-Fi/BT, CAN/CAN-FD, USB3.

    SoM's key features:

  • WiFi 5 / BT 5.2 / Ethernet Cat5e Dual
  • Operational temperature range: -25...+85°C
  • SoM size: 67 x 51.6 x 4.87mm
  • CPU Clocking: 1.2 GHz
  • Memory: 2 GB RAM / 16 GB eMMC

    The kit includes:

  • SOM & Carrier board
  • Debug Cable
  • Antenna
  • Boot/Rescue SD Card
  • Display & Touch Panel
  • Ethernet Cable
  • 12V Power Supply
  • Carrier Board Design Package
  • Embedded operating system: Linux

The product includes the System-on-Module VAR-SOM-MX8X in a stock version: VAR-SOM-MX8XQP_1200C_2048R_16G_AC_EC_TP_WBD_ET. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
