Variscite VAR-SOM-MX8X Evaluation Kit w/ Android - evaluation board
TechnologyBT 5.2WiFi 5Ethernet Cat5e Dual
Product width in millimeters51.6
Product length in millimeters67.6
ProcessorNXP iMX 8X
RAM memory2 GB
Operating systemAndroid
eMMC memory16 GB
Evaluation boards displayYes
Longevityuntil 2035Details
Parametry
Find similar products
Brand
Symbol
VAR-DVK-MX8X_AO
Producer code
5900000834771
Series
Technology
BT 5.2
WiFi 5
Ethernet Cat5e Dual
Voltage
3.3V
Product width in millimeters
51.6
CPU clocking (max)
1.2 GHz
Product length in millimeters
67.6
Temperature range
-25...+85°C
Number of cores
4
Processor
NXP iMX 8X
RAM memory
2 GB
Operating system
Android
eMMC memory
16 GB
UART interfaces
6
I2C interfaces
6
SPI interfaces
4
USB interfaces
3.0/2.0 x 1
1x 2.0
Evaluation boards display
Yes
Longevity
until 2035

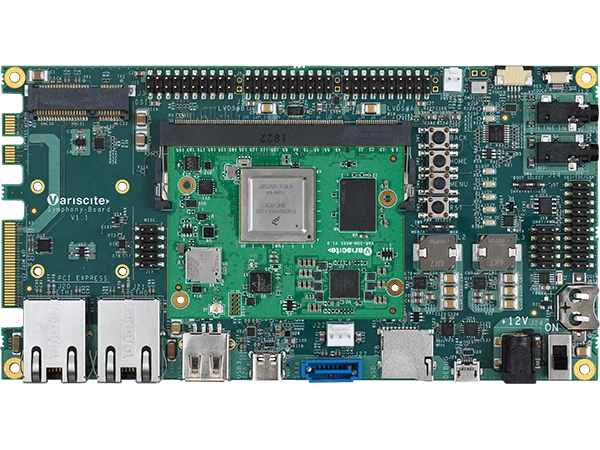

Variscite VAR-SOM-MX8X Evaluation Kit w/ Android
A high-performance yet power-optimized platform, the VAR-SOM-MX8X supports NXP’s i.MX 8X 1.2GHz Quad Cortex™-A35 processor plus Cortex-M4F real-time co-processor. It provides built-in safety features, highly integrated multimedia with 4K support and efficient power/performance architecture. In addition, the SoM supports 4K H.265 decoding,1080p H.264 encoding and decoding, DSI/LVDS, LCD, dual GbE, Wi-Fi/BT, CAN/CAN-FD, USB3.
- WiFi 5 / BT 5.2 / Ethernet Cat5e Dual
- Operational temperature range: -25...+85°C
- SoM size: 67 x 51.6 x 4.87mm
- CPU Clocking: 1.2 GHz
- Memory: 2 GB RAM / 16 GB eMMC
SoM's key features:
- SOM & Carrier board
- Debug Cable
- Antenna
- Boot/Rescue SD Card
- Display & Touch Panel
- Ethernet Cable
- 12V Power Supply
- Carrier Board Design Package
- Operating system: Android
The kit includes:
The product includes the System-on-Module VAR-SOM-MX8X in a stock version: VAR-SOM-MX8XQP_1200C_2048R_16G_AC_EC_TP_WBD_ET. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
