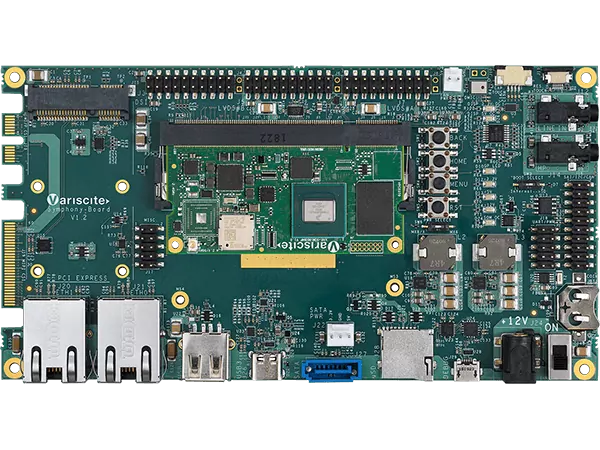

Variscite VAR-SOM-MX8M-PLUS Evaluation Kit w/ Android

VAR-SOM-MX8M-PLUS System on Module / Computer on Module is based on a 1.8GHz Quad Cortex™-A53 NXP’s iMX8M Plus processor with 800MHz Cortex™-M7 Real-time co-processor – a new generation of processors that combine integrated Artificial Intelligence (AI) / Machine Learning (ML) capabilities with advanced multimedia features.

The SoM includes a dedicated Neural Processing Unit (NPU), an intelligent vision system based on an Image Signal Processor (ISP) and dual camera inputs, as well as advanced multimedia and connectivity features such as H.265 HD video encode and decode engines, advanced 2D/3D GPU, voice processing, certified dual-band Wi-Fi, BT/BLE, dual GbE, dual USB3, dual CAN-FD, PCIe, up to 4K HDMI, dual LVDS, and DSI display output.

SoM's key features:

• WiFi 5 / BT 5.2 / Ethernet Cat5e Dual
• Operational temperature range: 0...+70°C
• SoM size: 67.8 x 33 mm
• CPU Clocking: 1.8 GHz
• Memory: 4 GB RAM / 16 GB eMMC

The kit includes:

• SOM & Carrier board
• Debug Cable
• Antenna
• Boot/Rescue SD Card
• 7″ WVGA Display & Touch Panel
• Ethernet Cable
• 12V Power Supply
• Carrier Board Design Package
• Heat sink
• Embedded operating system: Android

The product includes the System-on-Module VAR-SOM-MX8M-PLUS in a stock version: VAR-SOM-MX8MPQ_1800C_4096R_16G_AC_EC_TP_WBD_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
