Brand
Symbol
VAR-SOM-MX7
Series
Technology

BT 5.2
WiFi 5
Ethernet Cat5e Dual
Processor

NXP i.MX7
CPU clocking (max)

1 GHz
Number of cores
2
RAM memory

256 MB
512 MB
1 GB
2 GB
eMMC memory

8 GB
16 GB
32 GB
64 GB
128 GB
NAND memory
128 MB
256 MB
512 MB
Product length in millimeters

67.8
Product width in millimeters

38.6
UART interfaces
7
I2C interfaces
4
SPI interfaces
4
USB interfaces
2.0 x2
Operating system

Linux
Temperature range

-20...+85°C
0...+70°C
-40...+85°C
Voltage

3.3V
Longevity

until 2035

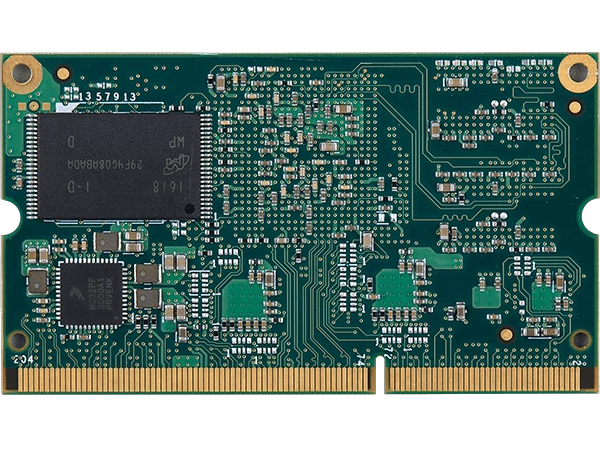

Variscite VAR-SOM-MX7
The VAR-SOM-MX7 is a high-performance processing for low-power System-on-Module that perfectly fits various embedded products and the growing market of connected and portable devices and segment. It is based on the NXP/Freescale i.MX7 Dual family of multipurpose processorsfrom which feature an ARM® Cortex™-A7 up to 1GHz + an additional ARM Cortex-M4.
The parameters available in the configurator define the SoM's configuration options. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
