Variscite VAR-SOM-DUAL - SoM module
TechnologyBT 5.1WiFi 4Ethernet Cat5e
Product width in millimeters33
Product length in millimeters67.8
ProcessorNXP iMX6
Longevityuntil 2035Details
Parametry
Find similar products
Brand
Symbol
VAR-SOM-DUAL
Series
Voltage
3.3V
Technology
BT 5.1
WiFi 4
Ethernet Cat5e
Product width in millimeters
33
CPU clocking (max)
1000 MHz
800 MHz
Product length in millimeters
67.8
Temperature range
-20...+70°C
0...+70°C
-40...+85°C
Number of cores
2
Processor
NXP iMX6
RAM memory
256 MB
512 MB
1 GB
Operating system
Android
Linux
eMMC memory
8 GB
16 GB
32 GB
64 GB
128 GB
UART interfaces
5
I2C interfaces
3
SPI interfaces
3
NAND memory
128 MB
256 MB
512 MB
USB interfaces
2.0 x2
Longevity
until 2035
Variscite VAR-SOM-DUAL

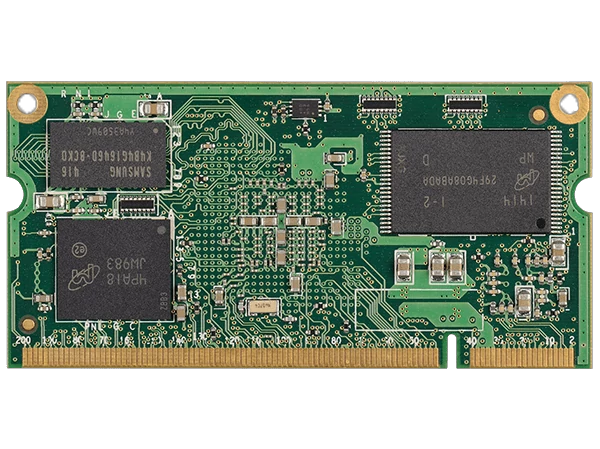

The VAR-SOM-DUAL is a small SoM that can operate in the industrial temperature range. This computer can be equipped with SLC NAND, eMMC, dual-band Wi-Fi/BT with MIMO, USB, Gigabit Ethernet and A/V interfaces.
The parameters available in the configurator define the SoM's configuration options. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
