Variscite SPEAR-MX8 Starter Kit w/ Linux - evaluation board

Variscite SPEAR-MX8 Starter Kit w/ Linux - evaluation board

TechnologyBT 5.2WiFi 5Ethernet Cat5e Dual
Product width in millimeters55
Product length in millimeters68
ProcessorNXP iMX 8QuadMax
RAM memory4 GB
Operating systemLinux
eMMC memory16 GB
Evaluation boards displayNo
Longevityuntil 2034
Size
uniwersalny
excl. VAT
2 618,45 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - SPEAR-MX8
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Variscite
Symbol
VAR-STK-SP8_LO
Series
i.MX 8
TechnologyTechnology
BT 5.2
WiFi 5
Ethernet Cat5e Dual
VoltageVoltage
3,4 - 4,5V
Product width in millimetersProduct width in millimeters
55
CPU clocking (max)CPU clocking (max)
1,6 GHz
Product length in millimetersProduct length in millimeters
68
Temperature rangeTemperature range
-25...+85°C
Number of cores
6
ProcessorProcessor
NXP iMX 8QuadMax
RAM memoryRAM memory
4 GB
Operating systemOperating system
Linux
eMMC memoryeMMC memory
16 GB
UART interfaces
5
I2C interfaces
4
SPI interfaces
4
USB interfaces
3.0/2.0 x 1
1x 2.0
Evaluation boards displayEvaluation boards display
No
LongevityLongevity
until 2034
Search

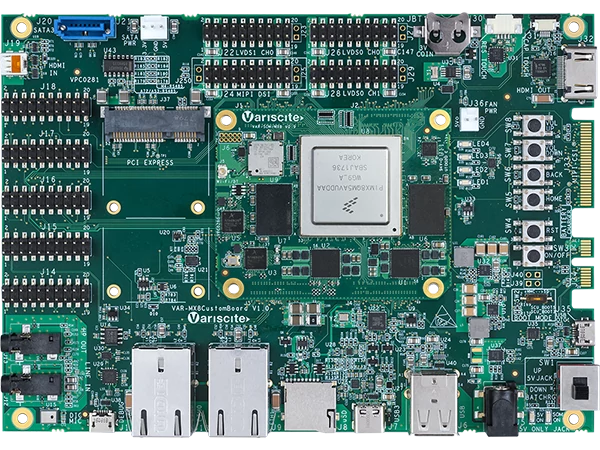

Variscite SPEAR-MX8 Starter Kit w/ Linux

The SPEAR-MX8 high-performance computer supports 4K UltraHD display, HQ audio, 2D/3D acceleration, camera connector and HDMI. In addition, the SoM supports dual-band Wi-Fi 802.11ac/a/b/g/n, BT/BLE, dual GbE, dual USB3, PCIe, SATA III, CAN FD, SPI and UART.

    SoM's key features:

  • WiFi 5 / BT 5.2 / Ethernet Cat5e Dual
  • Operational temperature range: -25...+85°C
  • SoM size: 68 x 55 x 4.7 mm
  • CPU Clocking: 1.6 GHz + 1.2 GHz
  • Memory: 4 GB RAM / 16 GB eMMC

    The kit includes:

  • SOM & Carrier board
  • Debug Cable
  • Antenna
  • Boot/Rescue SD Card
  • Carrier Board Design Package
  • Embedded operating system: Linux

The product includes the System-on-Module SPEAR-MX8 in a stock version: SPEAR-MX8QM_1612C_4096R_16G_AC_EC1_EC2_WBD_ET. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
