Variscite VAR-SOM-MX91

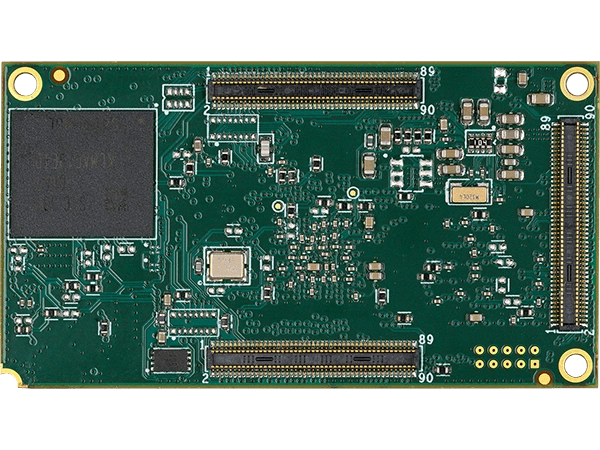

DART-MX91 offers a high-performance processing for a low-power System-on-Module. The product is based on the i.MX 91 family which represents NXP’s latest power-optimized processors for smart home, building control, contactless HMI, IoT edge, and Industrial applications.

The i.MX 91 includes powerful dual Arm® Cortex®-A55 processors with speeds up to 1.7 GHz integrated with a NPU that accelerates machine learning inference. A general-purpose Arm® Cortex®-M33 running up to 250 MHz is for real-time and low-power processing. Robust control networks are possible via CAN-FD interface. Also, dual 1 Gbps Ethernet controllers, one supporting Time Sensitive Networking (TSN), drive gateway applications with low latency.

The DART-MX91 provides an ideal building block for simple integration with a wide range of products in target markets requiring high-performance processing with low power consumption, compact size, and a very cost-effective solution.

The parameters available in the configurator define the SoM's configuration options. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
