Variscite DART-MX8M-PLUS Evaluation Kit w/ Linux

The DART-MX8M-PLUS runs on 1.8GHz Quad Cortex™-A53 NXP i.MX 8M Plus processor with 800MHz Cortex™-M7 Real-time co-processor. It is the first i.MX processor to provide dedicated Artificial Intelligence / Machine Learning (AI/ML) capabilities with integrated Neural Processing Unit (NPU), and an intelligent vision system based on Image Signal Processor (ISP) and camera interfaces. In addition to its integrated AI/ML capabilities, the System on Module / Computer on Module provides advanced multimedia and connectivity features including H.265 HD video encode and decode engines, advanced 2D/3D graphic acceleration, HDMI, LVDS, MIPI-DSI display, dual GbE, 2x USB3, PCIe, 2x CAN-FD and dual cameras inputs.

SoM's key features:

• WiFi 5 / BT 5.2 / Ethernet Cat5e Dual
• Operational temperature range: 0...+70°C
• SoM size: 55 x 30 mm
• CPU Clocking: 1.8 GHz
• Memory: 4 GB RAM / 16 GB eMMC

The kit includes:

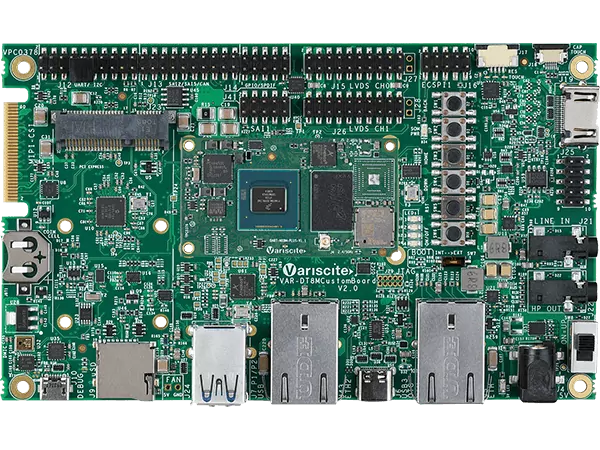

• SOM & Carrier board
• Debug Cable
• Antenna
• Boot/Rescue SD Card
• 7″ WVGA Display & Touch Panel
• Ethernet Cable
• 5V Power Supply
• Carrier Board Design Package
• Embedded operating system: Linux

The product includes the System-on-Module DART-MX8M-PLUS in a stock version: DART-MX8MPQ_1800C_4096R_16G_AC_EC_WBD_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
