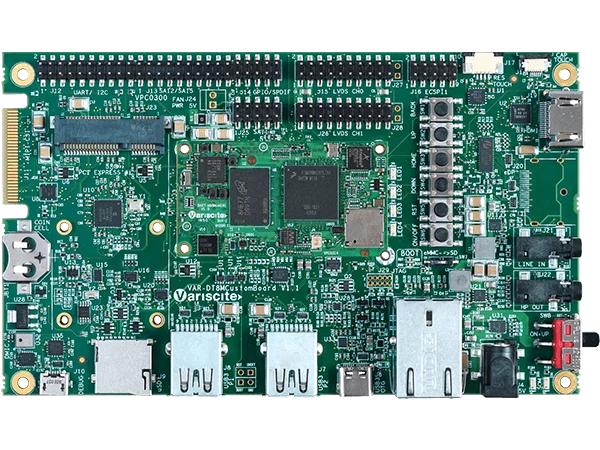

Variscite DART-MX8M-MINI Evaluation Kit w/ Android - evaluation board
Variscite DART-MX8M-MINI Evaluation Kit w/ Android - evaluation board
Variscite DART-MX8M-MINI Evaluation Kit w/ Android - evaluation board
Variscite DART-MX8M-MINI Evaluation Kit w/ Android - evaluation board

Variscite DART-MX8M-MINI Evaluation Kit w/ Android - evaluation board

TechnologyBT 5.2WiFi 5Ethernet Cat5e
ProcessorNXP i.MX8M Mini
RAM memory2 GB
eMMC memory16 GB
Product length in millimeters55
Product width in millimeters30
Operating systemAndroid
Evaluation boards displayYes
Longevityuntil 2034
Size
uniwersalny
excl. VAT
1 427,16 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - DART-MX8M-MINI Evaluation Kit
Product Data Sheet - DART-MX8M-MINI
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Variscite
Symbol
VAR-DVK-DT8M-MINI_AO
Producer code
5900000834757
Series
DART
TechnologyTechnology
BT 5.2
WiFi 5
Ethernet Cat5e
ProcessorProcessor
NXP i.MX8M Mini
CPU clocking (max)CPU clocking (max)
1,8 GHz
Number of cores
4
RAM memoryRAM memory
2 GB
eMMC memoryeMMC memory
16 GB
Product length in millimetersProduct length in millimeters
55
Product width in millimetersProduct width in millimeters
30
UART interfaces
4
I2C interfaces
3
SPI interfaces
3
USB interfaces
2.0 x2
Operating systemOperating system
Android
Evaluation boards displayEvaluation boards display
Yes
Temperature rangeTemperature range
0...+70°C
VoltageVoltage
3,5 - 5V
LongevityLongevity
until 2034
Search

Variscite DART-MX8M-MINI Evaluation Kit w/ Android

Packed in a tiny 55 x 30 mm package, the DART-MX8M-MINI System on Module / Computer on Module based on NXP’s i.MX8M Mini with up to 1.8GHz Quad-core ARM Cortex-A53™ plus 400MHz Cortex-M4™ real-time processor, leveraging advanced low power silicon process technology to provide optimized power consumption while maintaining a high-performance bar.

    SoM's key features:

  • WiFi 5 / BT 5.2 / Ethernet Cat5e
  • Operational temperature range: 0...+70°C
  • SoM size: 55 x 30 x 5,13 mm
  • CPU Clocking: 1.8 GHz
  • Memory: 2 GB RAM / 16 GB eMMC

    The kit includes:

  • SOM & Carrier board
  • Debug Cable
  • Antenna
  • Boot/Rescue SD Card
  • Display & Touch Panel
  • Ethernet Cable
  • 5V Power Supply
  • Carrier Board Design Package
  • Operating system: Android

The product includes the System-on-Module DART-MX8M-MINI in the stock version: DART-MX8MMQ_1800C_2048R_16G_AC_EC_LD_WBD_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
