Variscite DART-MX8M Evaluation Kit w/ Linux

DART-MX8M is a tiny 30mm x 55mm ARM SoM / CoM is based on NXP i.MX8M Quad 1.5GHz ARM Cortex-A53 plus 266MHz Cortex-M4. The high multimedia performance spec encompasses 4K video HEVC/H265/H264/VP9 decode with HDR, high-quality audio, 4K display support, 2D/3D graphics acceleration, with a variety of interfaces and connectivity options: Certified dual-band Wi-Fi 802.11 ac/a/b/g/n, BT 5.2/BLE, GbE, dual USB3, dual PCIe and UART.

SoM's key features:

• WiFi 5 / BT 5.2 / Ethernet Cat5e
• Operational temperature range: 0...+70°C
• SoM size: 55 x 30 x 4.7 mm
• CPU Clocking: 1.5 GHz
• Memory: 4 GB RAM / 16 GB eMMC

The kit includes:

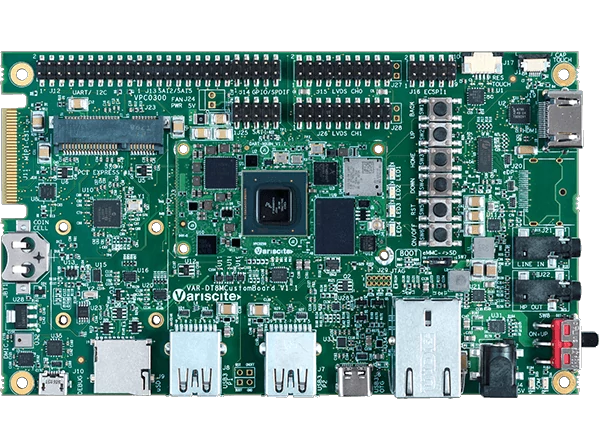

• SOM & Carrier board
• Debug Cable
• Antenna
• Boot/Rescue SD Card
• Display & Touch Panel
• Ethernet Cable
• 5V Power Supply
• Carrier Board Design Package
• Embedded operating system: Linux

The product includes the System-on-Module DART-MX8M in the stock version: DART-MX8MQ_1500C_4096R_16G_AC_EC_LD_WBD_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
