Variscite DART-MX6 - SoM module
ProcessorNXP iMX6
TechnologyBT 5.1WiFi 4Ethernet Cat5e
Product width in millimeters20
Product length in millimeters50
Longevityuntil 2027Details
Parametry
Find similar products
Brand
Symbol
DART-MX6
Series
Processor
NXP iMX6
Voltage
3.3V
Technology
BT 5.1
WiFi 4
Ethernet Cat5e
Product width in millimeters
20
CPU clocking (max)
800 MHz
Product length in millimeters
50
Temperature range
0...+70°C
-20...+85°C
-40...+85°C
Number of cores
4
2
eMMC memory
8 GB
16 GB
32 GB
64 GB
USB interfaces
2.0 x2
SPI interfaces
4
I2C interfaces
3
UART interfaces
5
RAM memory
1 GB
2 GB
Operating system
Android
Linux
Longevity
until 2027

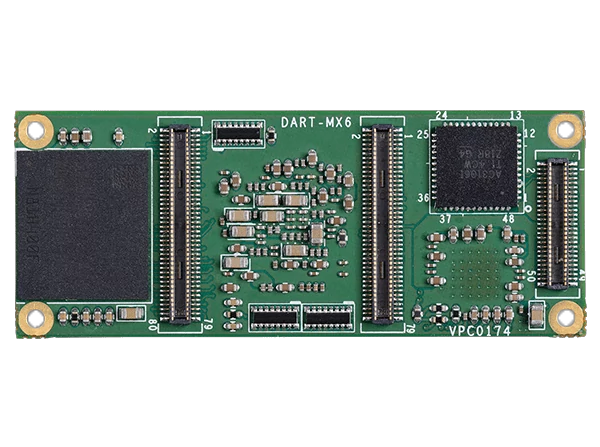

Variscite DART-MX6
Measuring just 20x50 mm, the Variscite DART-MX6, is the smallest SOM module supporting NXP/Freescale's i.MX6 Cortex-A9 quad-core and dual-core processors. Its compact size, optimal power consumption and performance make the DART-MX6 ideal for portable, battery-powered embedded systems. The device is highly integrated in terms of connectivity, with interfaces : dual-band Wi-Fi/BT with optional MIMO, USB, Gigabit Ethernet, PCIe and A/V.
The parameters available in the configurator define the SoM's configuration options. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
