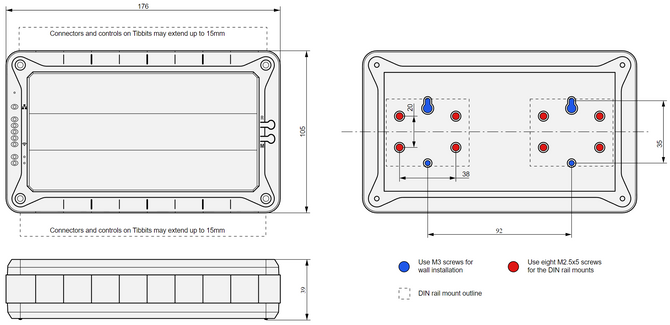

Size 3 Tibbo Project Box

Fully assembled TPB3, in retail packaging. Includes remover tongs. TPB3 fits one Size 3 Tibbo Project PCB (TPP3), Gen. 2, one original Size 3 Tibbo Project PCB (TPP3), or one original Size 3 Linux Tibbo Project PCB (LTPP3). It accommodates up to fourteen Tibbit modules and fourteen Tibbit connectors. The TPB3 kit includes top and bottom covers, left and right walls, status LED light guide, screws, and paper inserts with transparent covers for marking wires and cables. Two sides of the TPB3 are formed by rows of connector Tibbits.

When housed in a TPB equipped with the available vibration protection kit, TPS devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard.

The list of TPB3 parts:

• 1. Top cover
• 2. Bottom cover
• 3. Right wall
• 4. Left wall
• 5. LED light guide
• 6. Back label
• 7. Paper insert, bottom row
• 8. Paper insert, top row
• 9. Two paper insert covers
• 10. MD/RST button PCB
• 11. Fifteen blank Tibbit connector shells (PM12P1001-03)
• 12. Four main screws (2.5mm hex socket, 3.5mm x 32mm thread)
• 13. Four PCB screws
