RAKwireless RAK7258 - EU868 - LTE (EG95-E) - gateway
Details
Parametry
Find similar products
Brand
Symbol
RAK7258 - EU868 - 8 Channel - LTE
Producer code
5900000730431
Series
Technology
LoRaWAN 1.0.2
LTE
WiFi 4
Ethernet Cat5
LoRaWAN
Chip
MT7628
Semtech SX1301
Positioning
Internal
Channels
8
Ingress Protection
IP30
RAM memory
128 MB
Firmware
WisGateOS V1.0.2
Product length in millimeters
180
Product width in millimeters
120
Product height in millimetres
43
Temperature range
-10...+55°C

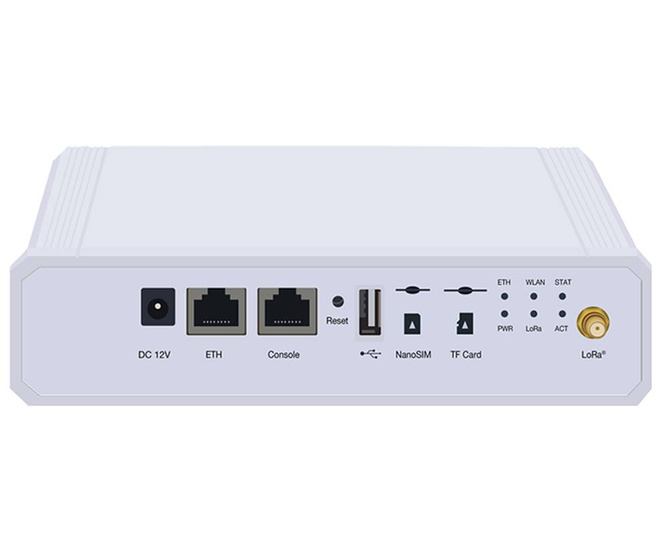

RAKwireless RAK7258 - EU868 - LTE (EG95-E)
RAK7258 WisGate Edge Lite is a full 8-channel gateway with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup that allows it to be easily configured via the default Wi-Fi AP mode. The product supports LTE connectivity.
Product not recommended for new designs. Use RAK7268V2/RAK7268CV2.
Key features:
- Full support for LoRaWAN™ Stack (version 1.0.2).
- 100M base-T Ethernet with PoE support (802.3 af).
- Multi back-haul capability via Ethernet, WiFi, or cellular connectivity.
- Support for OpenWRT software with Web UI.
- Connectivity to private (ChirpStack) and public (TTN) web servers.
- Built-in LoRaServer for easy application deployment and hub integration (up to 128 LoRa nodes; more incur an additional fee).
- TF card support for log backups.
The kit includes:
- Gateway
- LoRa antenna
- Screws
- Mounting frame
- Power supply
The products operating temperature range is -10...55˚C.
