RAKwireless RAK7244 WisGate Developer D4 - EU868 - 2 GB - Non-LTE

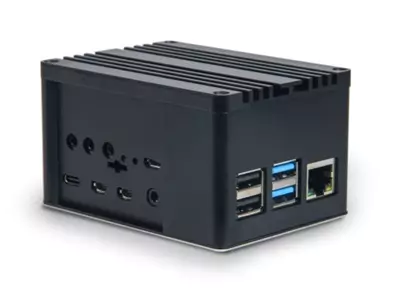

The RAK7244 LPWAN Developer Gateway development hub from Rak Wireless is the successor to the RAK7243 LPWAN Developer Gateway. The device includes an integrated Raspberry Pi 4 computer and an RAK2245 Pi HAT overlay with GPS module and heat sinks. An optional version of the hub is available with the RAK2013 Cellular Pi HAT overlay. The housing is made entirely of aluminium.

The built-in RAK2245 Pi HAT overlay is based on the SX1301 RF unit, which allows eight data packets to be transmitted in parallel at different LoRa frequencies. As a result, a device based on this overlay will be ideal for modern LPWA wireless networks.

The RAK7244 LPWAN Developer Gateway Hub is a Class A and Class C product designed for building prototypes, proof-of-concept demonstrations or evaluation kits. The device is compatible with Raspbian OS and will work well for applications such as smart grid, smart farms and IoT.

Features:

• Includes Raspberry Pi4
• Compatible with LoRaWAN® Stack technology (version 1.0.2)
• Support for eight channels (SF7-SF12)
• Support for 868MHz frequency (other variants available)
• Emission power: 27 dBm Max
• RX sensitivity: -139dBm
• Includes Ublox MAX-7Q GPS module

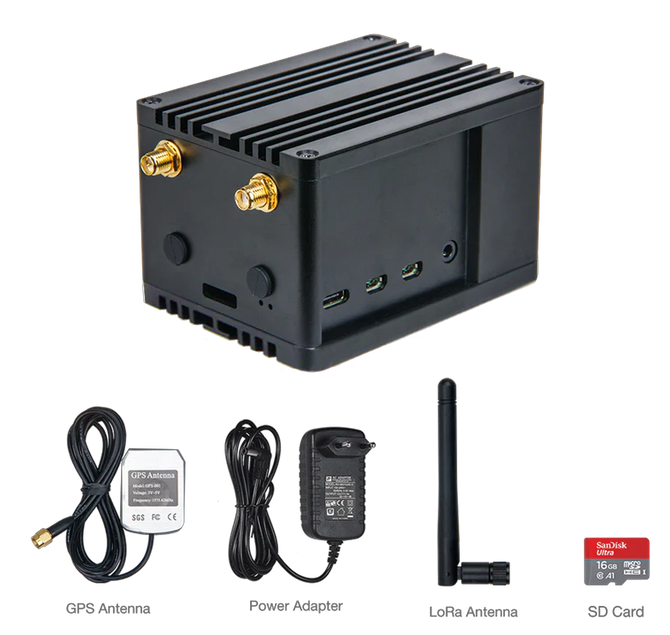

The kit includes:

• Concentrator RAK7244
• LPWAN antenna
• GPS antenna
• Power adapter
• SD card
