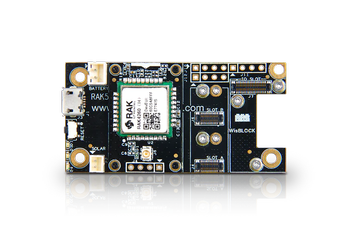

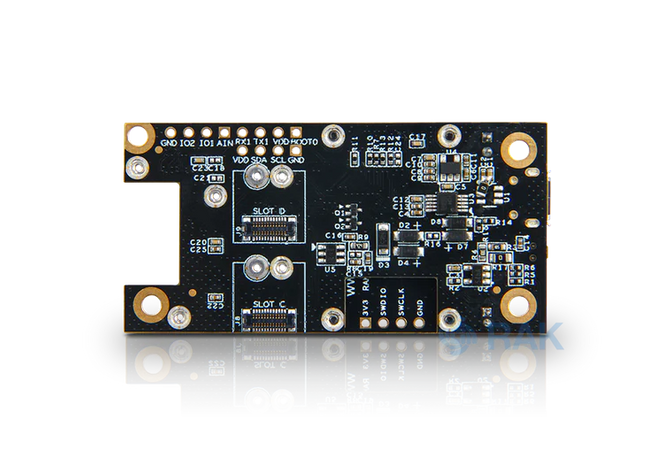

RAKwireless RAK4260-EU868 Evaluation Board

The RAK4260 LoRa® Evaluation Board kit is a product of the WisBlock family that includes the RAK4261 (RAK4260 module + Breakout board) and the RAK5005 WisBase board. This kit allows easy access to all serial and GPIO ports for easy configuration of the module.

Module features:

• Based on SiP Microchip ATSAMR34J18 module
• High-quality module with low power consumption
• Highly stable 32MHz TXCO operation
• Maximum transmit power 20dBm
• High receiver sensitivity (SF12 BW125kHz): -136dBm
• Wide choice of interfaces: I2C, SPI, ADC, UART, GPIOs
• Compact dimensions: 15mm x 15mm x 2.0mm

The kit includes:

• RAK4260 EVB (RAK4261 + RAK5005)
• 1x micro USB cable
• 1x LoRa® antenna (iPEX)
• 1x 4-pin pin connector
• 9x connection cables
