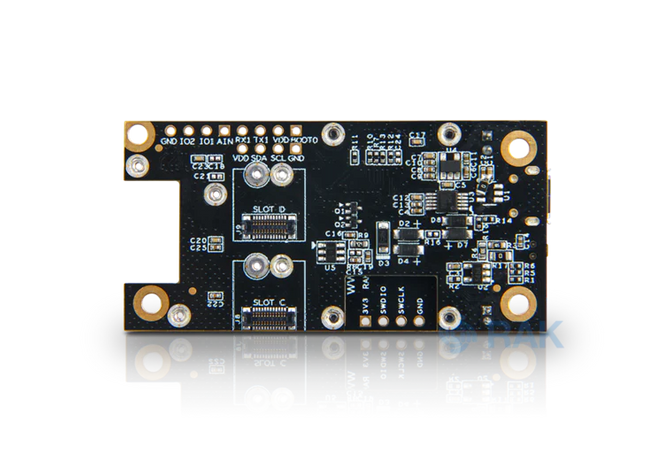

RAKwireless RAK4200-EU868 Evaluation Board

The RAK4200 LoRa® Evaluation Board is part of the WisBlock series. This product includes two components: the RAK4200 module and the RAK5005 WisBase board. The kit gives easy access to the serial and GPIO ports of the module.

Module features:

• Compact Form Factor: 15.5 x 15 x 2.5 mm
• 20 Pin Stamp Pad for PCB SMT mounting
• I/O ports: UART/I2C/GPIO
• Temperature range: -40°C to +85°C
• Supply voltage: 2.0 ~ 3.6V
• Frequency range: 863MHz to 870MHz (EU), ISM and SRD systems
• Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
• Ultra-Low Power Consumption 1.5uA in sleep mode
• Core: ARM 32-bit Cortex M0+ with MPU
• Up to 128KB flash memory with ECC
• 20KB RAM

The kit includes:

• RAK4200 EVB
• 1x micro USB cable
• 1x LoRa® antenna (iPEX)
• 1x 4-pin pin connector
• 13x connection cables
