Details
Parametry
Find similar products
Brand
Symbol
SKU: 515019
Producer code
5900000829074
Series
Chip
Semtech SX1302
Semtech SX1250
Technology
LoRaWAN
Main interface
SPI
Number of pins
52
Temperature range
-40...+85°C
Voltage
3.3V

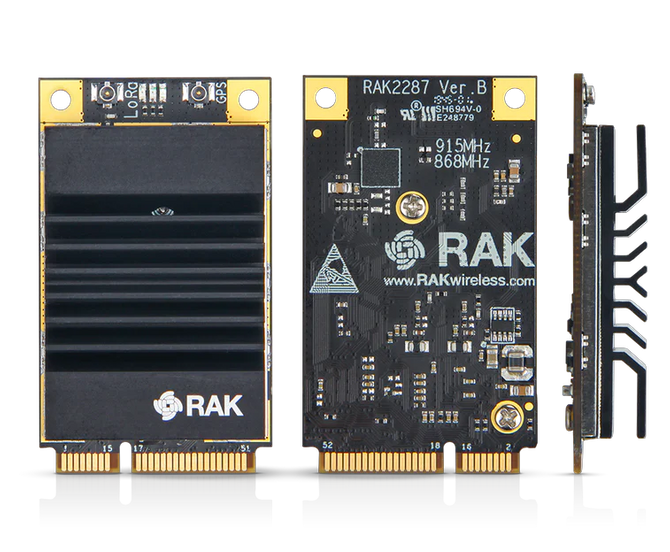

RAKwireless RAK2287-EU868-SPI
The RAK2287 is a LoRa concentrator module in the form of a board with a miniPCIe connector. This model offers the possibility to easily extend an existing application with LoRaWAN connectivity.
Key features:
- Designed based on Mini PCI-e form factor with heat sink
- SX1302 base band processor emulates 8 x 8 channels LoRa packet detectors, 8 x SF5-SF12 LoRa demodulators, 8 x SF5-SF10 LoRa demodulators, one 125/250/500 kHz high-speed LoRa demodulator and one (G) FSK demodulator
- 3.3 V Mini PCI-e, compatible with 3G/LTE card of Mini PCI-e type
- Compatible with 3G/LTE card of Mini PCI-e type
- Tx power up to 27 dBm, Rx sensitivity down to -139 dBm @ SF12, BW 125 kHz
- Supports SPI interfaces
The kit includes:
- 1x RAK2287 SPI
- 1x iPEX LoRa antenna
