RAKwireless RAK2247-EU868-USB-SX1301 - LPWAN concentrator module
RAKwireless RAK2247-EU868-USB-SX1301 - LPWAN concentrator module
RAKwireless RAK2247-EU868-USB-SX1301 - LPWAN concentrator module
RAKwireless RAK2247-EU868-USB-SX1301 - LPWAN concentrator module
RAKwireless RAK2247-EU868-USB-SX1301 - LPWAN concentrator module
RAKwireless RAK2247-EU868-USB-SX1301 - LPWAN concentrator module

RAKwireless RAK2247-EU868-USB-SX1301 - LPWAN concentrator module

ChipSemtech SX1301Semtech SX125XFTDI FT2232HL
TechnologyLoRaWAN 1.0.2GNSS
Main interfaceUSB
Temperature range-40...+85°C
Main interface
Temperature range
Size
uniwersalny
excl. VAT
102,26 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - RAK2247
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
RAKwireless
Symbol
SKU: 515001
Producer code
5900000730462
Series
WisLink
ChipChip
Semtech SX1301
Semtech SX125X
FTDI FT2232HL
TechnologyTechnology
LoRaWAN 1.0.2
GNSS
Main interfaceMain interface
USB
Product length in millimetersProduct length in millimeters
50.95
Product width in millimetersProduct width in millimeters
30
Product height in millimetresProduct height in millimetres
10.4
Number of pinsNumber of pins
52
VoltageVoltage
3.3V
Temperature rangeTemperature range
-40...+85°C
Search

RAKwireless RAK2247-EU868-USB-SX1301

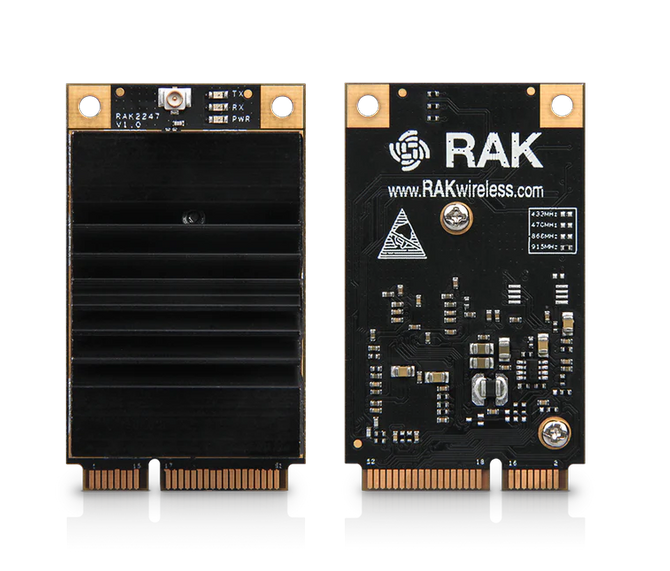

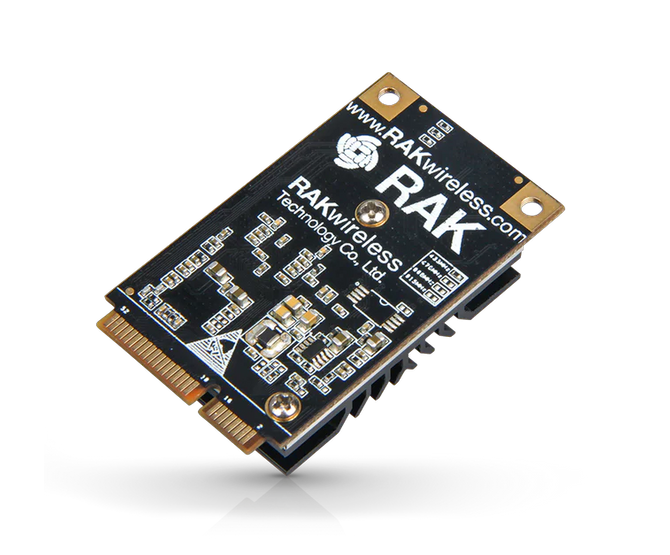

RAK2247 is RAK's LoRa hub module in the form of a board with a miniPCIe connector. This model is the successor to the RAK833 module, against which it offers higher signal power and a more efficient heatsink for even more efficient heat dissipation.

Key features:

  • Fully featured, multi-channel LoRaWAN™ hub module (SX1301)
  • Tx signal strength up to 25dBm
  • RX receiver sensitivity up to -139dBm
  • Improved interference immunity compared to the original model (Second SAW)
  • Full support for LoRaWAN 1.0.2 protocol
  • 52-pin mPCIe connector, compatible with 3.3V slots
  • USB interface
  • Plug-and-play solution

The kit includes:

  • 1x RAK2247
  • 1x iPEX antenna
