RAKwireless RAK2247-EU868-SPI-SX1308 - LPWAN concentrator module
Details
Parametry
Find similar products
Brand
Symbol
SKU: 515025
Series
Chip
Semtech SX1308
Semtech SX125X
FTDI FT2232HL
Technology
LoRaWAN 1.0.2
GNSS
Main interface
SPI
Product length in millimeters
50.95
Product width in millimeters
30
Product height in millimetres
10.4
Number of pins
52
Voltage
3.3V
Temperature range
0...+70°C
RAKwireless RAK2247-EU868-SPI-SX1308

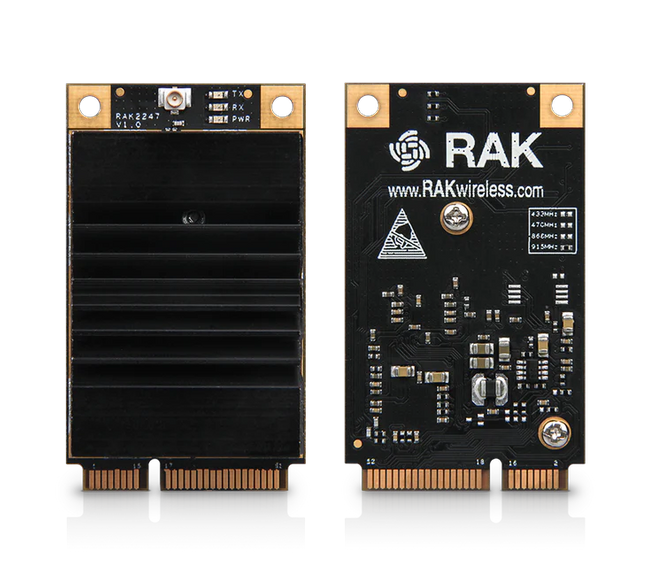

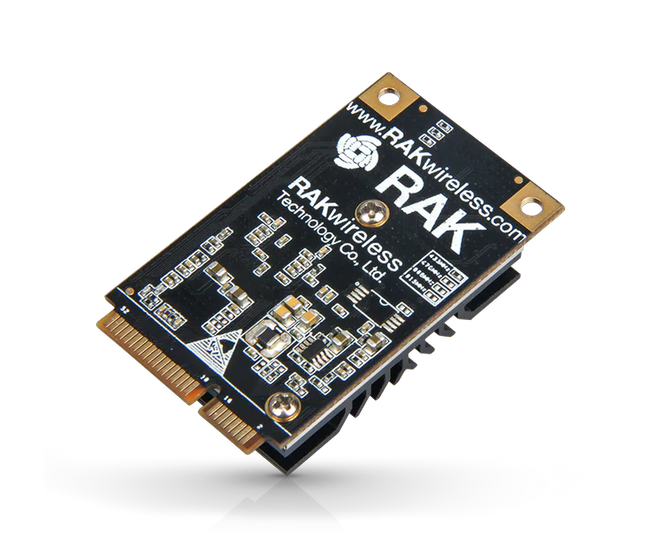

RAK2247 is RAK's LoRa hub module in the form of a board with a miniPCIe connector. This model is the successor to the RAK833 module, against which it offers higher signal power and a more efficient heatsink for even more efficient heat dissipation.
Key features:
- Fully featured, multi-channel LoRaWAN™ hub module (SX1308)
- Tx signal strength up to 25dBm
- RX receiver sensitivity up to -139dBm
- Improved interference immunity compared to the original model (Second SAW)
- Full support for LoRaWAN 1.0.2 protocol
- 52-pin mPCIe connector, compatible with 3.3V slots
- SPI interface
- Plug-and-play solution
The kit includes:
- 1x RAK2247
- 1x iPEX antenna
