RAKwireless RAK2245-EU868

RAK2245 Stamp WisLink LPWAN Concentrator is a complete and cost efficient gateway solution base on Semtech SX1301 fully utilizing the LoRa System. This LPWAN Concentrator module supports eight channels and is available for all LoRaWAN international standard bands.

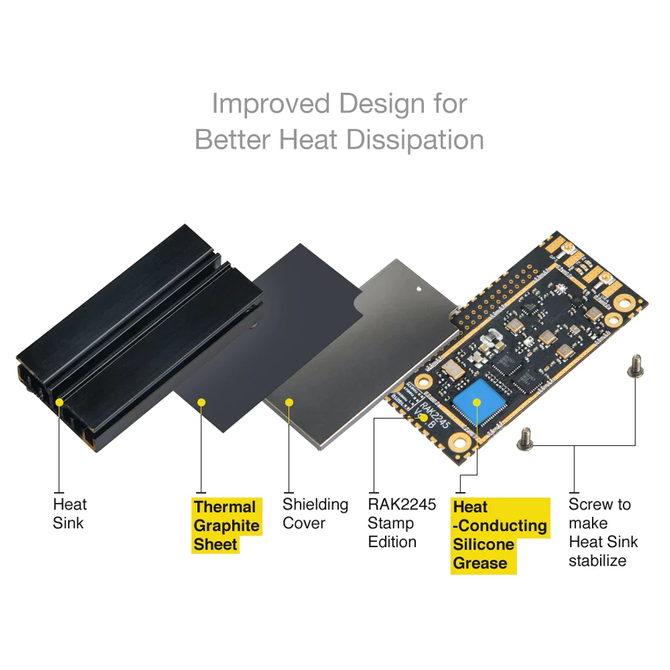

The Stamp form factor feature enables easy integration into the system's main board, providing LoRaWAN functionality. This ultra compact module measures just 60mm x 30mm x 14.9mm, believed to be the world’s smallest gateway module which has a built-in GPS chip. It comes with a mounted heat-sink that improves the thermal heat dissipation and overall performance of the device.

Key features:

• Compatible with Stamp Edition specifications with mounted heat-sink
• SX1301 base band processor, emulates 49 x LoRa demodulators 10 parallel demodulation paths, support 8 uplinks channel, 1 downlink channel
• 2 x SX125X TX/RX front-ends high/ low frequency
• Supports 5 V power supply, integrated level conversion circuit
• TX power up to 27 dBm, RX sensitivity down to - 139 dBm @ SF12, BW 125 kHz
• Supports the LoRaWAN 1.0.2 protocol
• Supports global license-free frequency band EU868
• Supports SPI interface
• Integrated the Ublox MAX-7Q GPS Module
