RAKwireless RAK19010

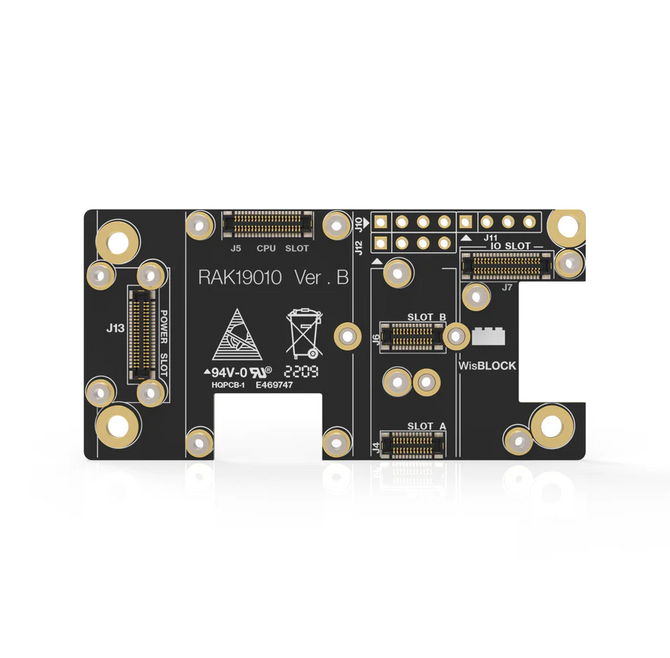

RAK19010 is a WisBlock Base Board with Power Slot that connects WisBlock Core and other WisBlock Modules. The power slot of RAK19010 is required to have an attached WisBlock Power Slot module that provides power supply to the core and other modules. There are many different types of power slot modules compatible with RAK19010 and the choice will depend on the type of application.

It has one slot reserved for the power slot module, one for the core module, one slot for the IO module, and four sensor slots A-D for small WisBlock modules. The WisBlock Core, Power, and IO modules are attached on the top side, and smaller WisBlock modules can be attached to the top or bottom side of the RAK19010. Slot A and D hold modules up to 23 mm in size, while all slots A up to D support 10 mm WisBlock modules. Also, there are three 2.54 mm pitch headers for extension interface with BOOT, GPIO, ADC, I2C, and UART pins.

Key features:

• Flexible building block design, which enables modular function realization and expansion
• High-speed interconnection secured with screws to ensure signal integrity
• Supports multiple types of low-power MCUs
• Supports multiple types of sensors - a single board can support a combination of two different types of sensors

Supports different power modules depending on the applications.

• RAK19012 - USB, LiPo and Solar
• RAK19013 - LiPo and Solar
• RAK19015 - Battery
• RAK19016 - 5 V to 24 V voltage input

Module Slots

• 1 WisBlock Core module
• 1 WisBlock power module
• 1 WisBlock module compatible with IO slot
• 4 WisBlock modules compatible with slots A-D
• Pin headers accessible pins for BOOT, GPIO, ADC, I2C, and UART interfaces

Size

• RAK19010 has a size of only 30 x 60 mm, which lets you create solutions that fit into the smallest housings.
