RAKwireless RAK19009

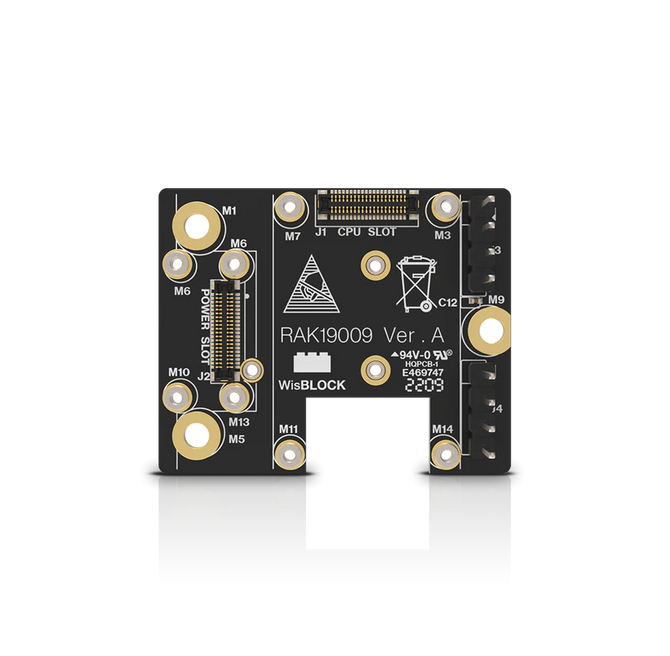

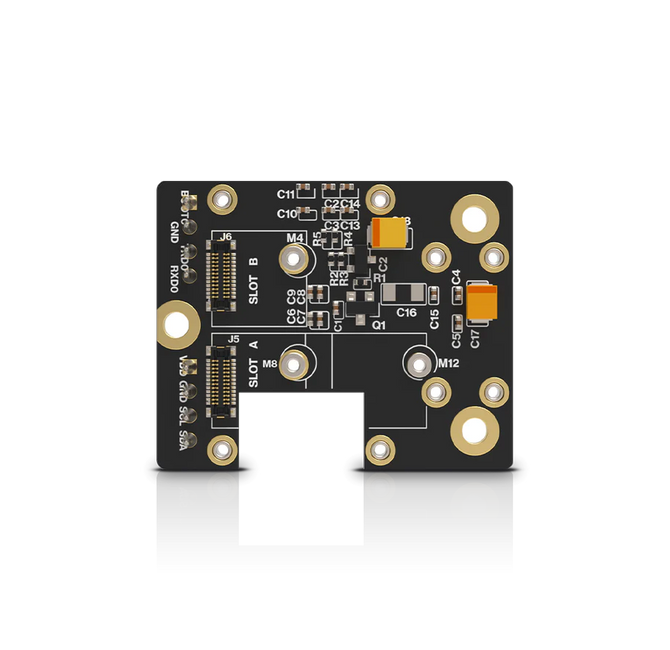

RAK19009 is a WisBlock Base board that connects WisBlock Core, WisBlock Power Module, and WisBlock Modules. It has one slot reserved for the WisBlock Core module, one slot for the WisBlock Power module, and two Slot C-D for WisBlock Modules. The WisBlock Core and the Wisblock Power module are attached on the top side and the WisBlock Modules are attached to the bottom side of the RAK19009 WisBlock Base board. Slot C holds modules up to 23 mm in size, while Slot D supports 10 mm WisBlock Modules. Also, there are two 2.54 mm pitch headers for extension interface with BOOT, I2C, and UART pins.

Key features:

• Flexible building block design, which enables modular function realization and expansion
• High-speed interconnection connectors in the WisBlock Base board to ensure the signal integrity
• Supports multiple types of low-power MCUs
• Supports multiple types of sensors - a single board can support a combination of two different types of sensors
• Fulfills Industrial level design
• Compact size: 30 x 37 mm
