RAKwireless RAK19007

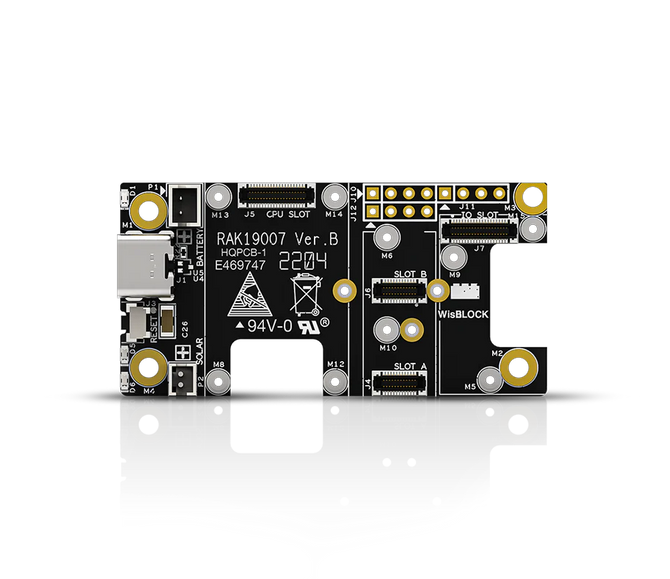

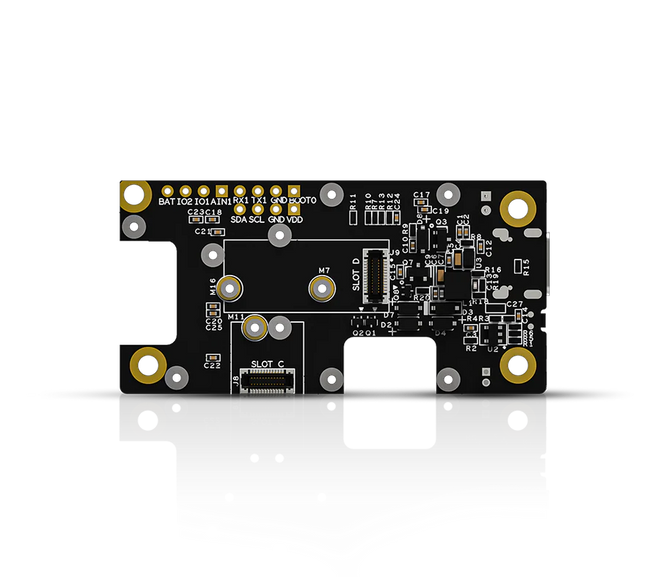

RAK19007 is a WisBlock Base Board 2nd Gen that connects WisBlock Core, WisBlock IO, and WisBlock Modules. It provides the power supply and interconnection to the modules attached to it. It has one slot reserved for the WisBlock Core module and four slots A-D for WisBlock modules. The WisBlock Core is attached on the top side, and the WisBlock modules are attached to the top or bottom side of the RAK19007. The Slot D holds modules up to 23 mm in size, while slots A to C support 10 mm WisBlock modules. Also, there are three 2.54 mm pitch headers for extension interface with BOOT, GPIO, I2C, and UART pins.

Key features:

• Flexible building block design, which enables modular function realization and expansion
• High-speed interconnection connectors in the WisBlock Base board to ensure the signal integrity
• Supports multiple types of low power MCUs
• Supports multiple types of sensors. A single board can support a combination of two different types of sensors
• Low power battery power supply
• Supports lithium battery charging
• Supports solar charging
• Fulfills Industrial level design
• Compact size: 30 x 60 mm
