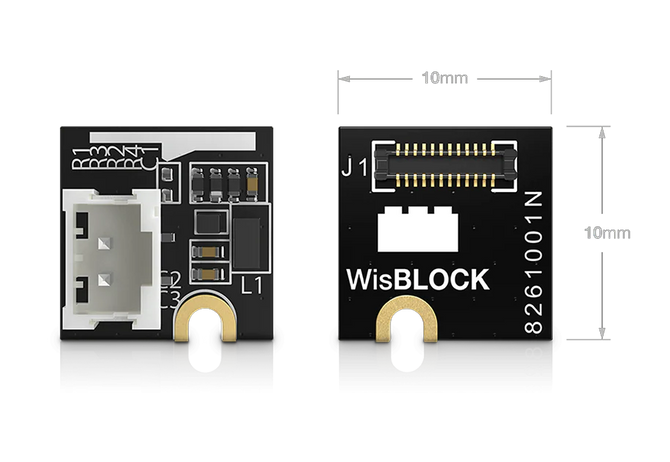

RAKwireless RAK19002

RAK19002 is a step-up boost regulator module, part of the RAKwireless WisBlock Series. The module can supply 12 V/50 mA and could be mounted on the WisSensor slot of RAK5005-O. The output voltage of the module is controlled by WisBlock Core IO pin.

Features:

• TPS61046 step-up boost converter
• Input voltage: 3.3 V
• Output voltage: 12 V
• Up to 85% efficiency at 3.6 V input and 12 V output
• ±2 % output voltage accuracy
• 50 mA output current
• Chipset: Texas Instruments TPS61046
• Module size: 10 x 10 mm
