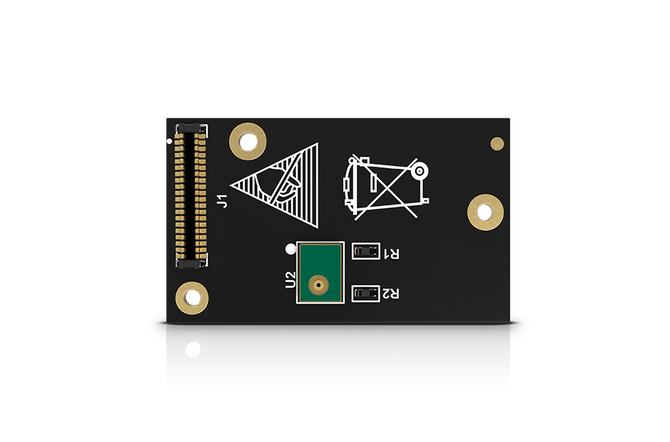

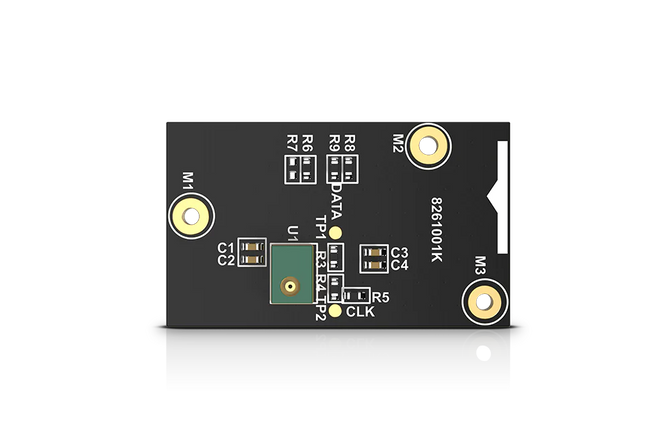

RAKwireless RAK18000

RAK18000 is a WisBlock Sensor module that extends the WisBlock system with sound sensing capability. It is based on two MP34DT06J microphone modules. The RAK18000 is a digital microphone module that is designed to detect sounds and to support left and right channels. It is also capable of changing microphone orientation on the left or right channel through the switch resistor.

Key features:

• Voltage Supply: 3.3 V
• Current Consumption: 5 µA to 650 µA
• Chipset: ST MP34DT06J
• 64 dB signal-to-noise ratio
• –26 dBFS ± 1 dB sensitivity
• Stereo microphone 2 x MP34DT06J
• Low power consumption
• Size: 25 x 15 mm
