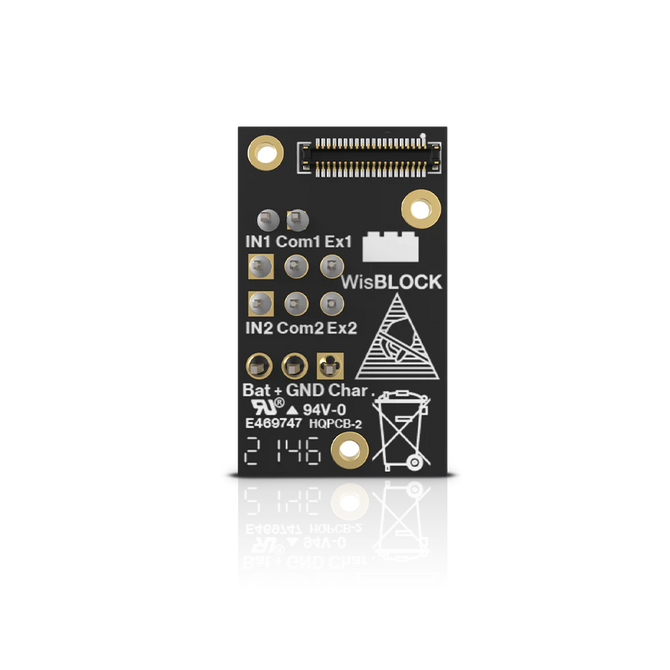

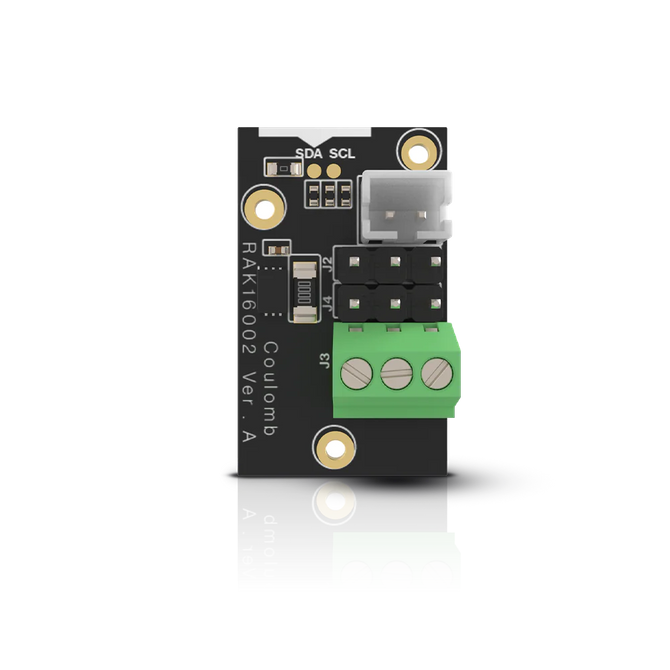

RAKwireless RAK16002

RAK16002 is a Coulomb sensor module based on LTC2941IDCB that features programmable high and low thresholds for the accumulated charge. If a threshold is exceeded, the device communicates an alert by setting a flag in the internal status register. It can measure the battery charge state in battery-powered IoT devices. Its operating range is perfectly suited for single-cell Li-Ion batteries.

The precision coulomb counter integrates current through an internal sense resistor between the battery’s positive terminal and the load or charger. The measured charge is stored in internal registers. An I2C interface accesses and configures the device.

Key features:

• Based on LTC2941IDCB
• Indicates accumulated battery charge and discharge
• ±1 A Sense current range
• I2C interface
• High accuracy analog integration
• 1% Charge accuracy
• Configurable alert output/charge complete input
• 2.7 V to 5.5 V Operating range
• Quiescent current less than 100 µA
• Operating temperature: -40 °C ~ 85 °C
• Storage temperature :-65 °C ~ 150 °C
• 15 mm x 25 mm
