RAKwireless RAK16001 - interface module
RAKwireless RAK16001 - interface module
RAKwireless RAK16001 - interface module
RAKwireless RAK16001 - interface module
RAKwireless RAK16001 - interface module
RAKwireless RAK16001 - interface module

RAKwireless RAK16001 - interface module

ChipTI ADS7830
Product length in millimeters45
Product width in millimeters22
Number of pins40
Size
uniwersalny
excl. VAT
7,89 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - RAK16001
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
RAKwireless
Symbol
SKU: 100068
Producer code
5900000822501
Series
WisBlock
ChipChip
TI ADS7830
Product length in millimetersProduct length in millimeters
45
Product width in millimetersProduct width in millimeters
22
Number of pinsNumber of pins
40
VoltageVoltage
3.3V
Search

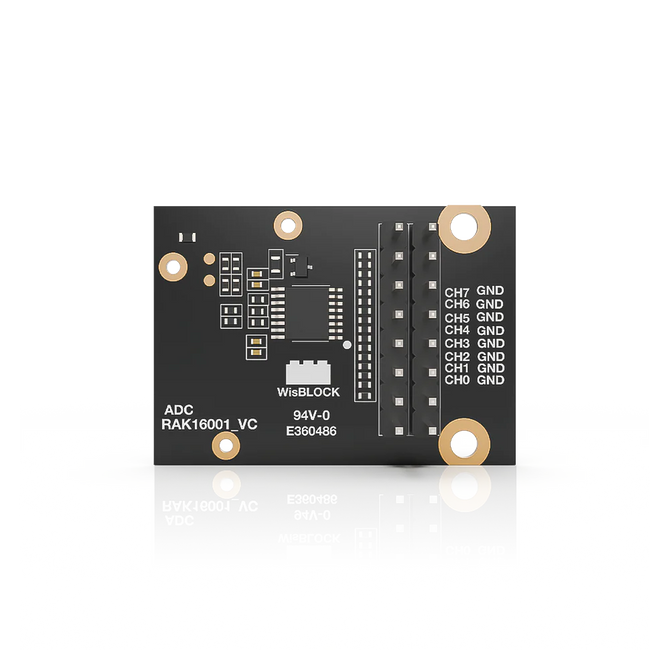

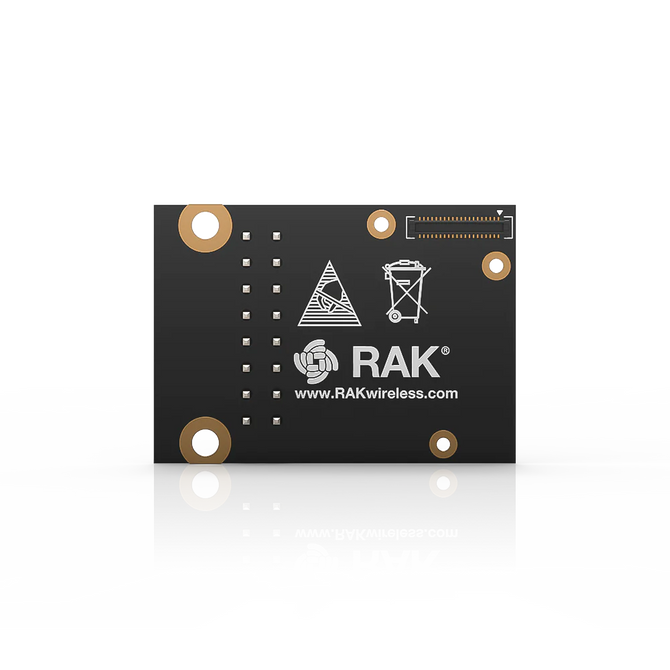

RAKwireless RAK16001

RAK16001 is an Analog-to-Digital (ADC) module, which uses an ADS7830 from Texas Instruments that can measure 8-independent voltages or 4-independent differential voltages. The ADS7830 is an 8-bit ADC module that features a serial I2C interface and an 8-channel multiplexer with one sample-and-hold amplifier circuit.

    Key features:

  • ADC Module: 8 Single-ended Inputs or 4 Differential Inputs
  • 70 kHz Sampling Rate
  • ±0.5 LSB INL/DNL
  • 8 Bits no missing codes
  • 3.3 V Power supply
  • Internal voltage reference at 2.5 V
  • Chipset: Texas Instruments ADS7830
  • Module size: 25 X 45 mm
