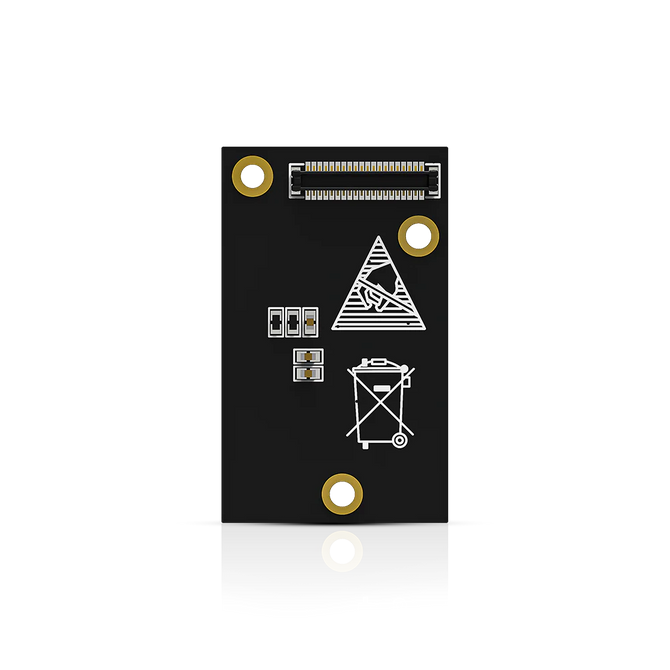

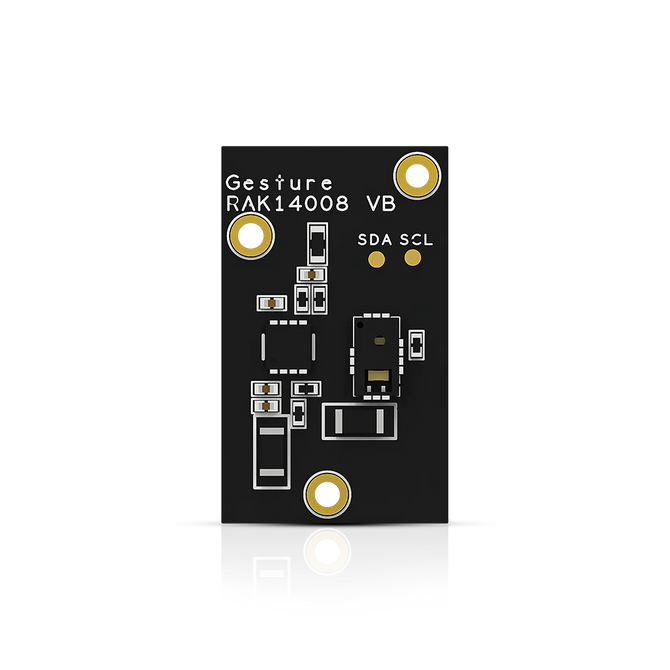

RAKwireless RAK14008

RAK14008 is a gesture sensor module based on PAJ7620U2. It is designed for gesture recognition applications with an I2C digital interface. It can recognize nine (9) human hand gesticulations such as moving up, down, left, right, forward, backward, circle-clockwise, circle-counter clockwise, and waving. It also offers built-in proximity detection in sensing approaching or departing objects from the sensor.

Key features:

• Gesture speed:
• 60-600 °/s in Normal Mode
• 60-1200 °/s in Gaming Mode
• On-board low noise high PSRR voltage regulator
• Flexible power saving scheme
• I2C interface up to 400 Kbit/s
• Ambient light immunity
• Ambient light noise cancellation
• VBAT：3.2-5.5 V
• VCC：2.8-3.3 V
• Chipset: PixArt Imaging PAJ7620U2
• Operating Temperature: -40 °C ~ 85 °C
• Storage Temperature :-40 °C ~ 125 °C
• Module size: 25 X 15 mm
