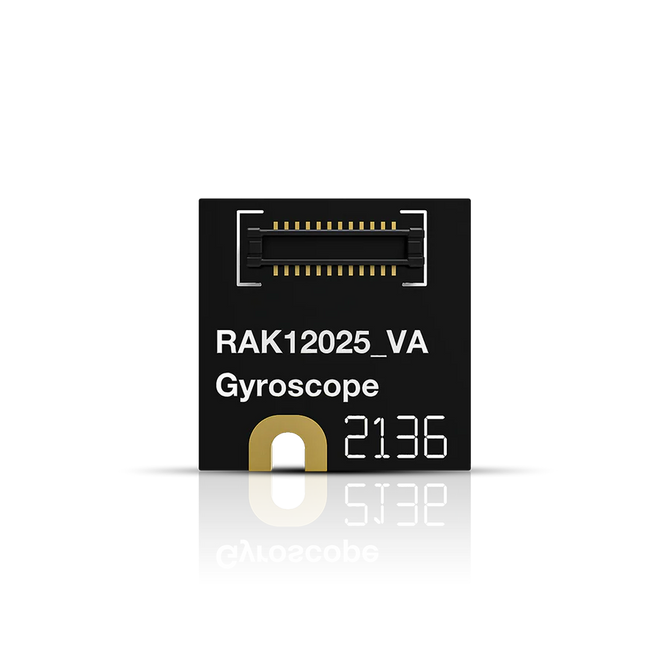

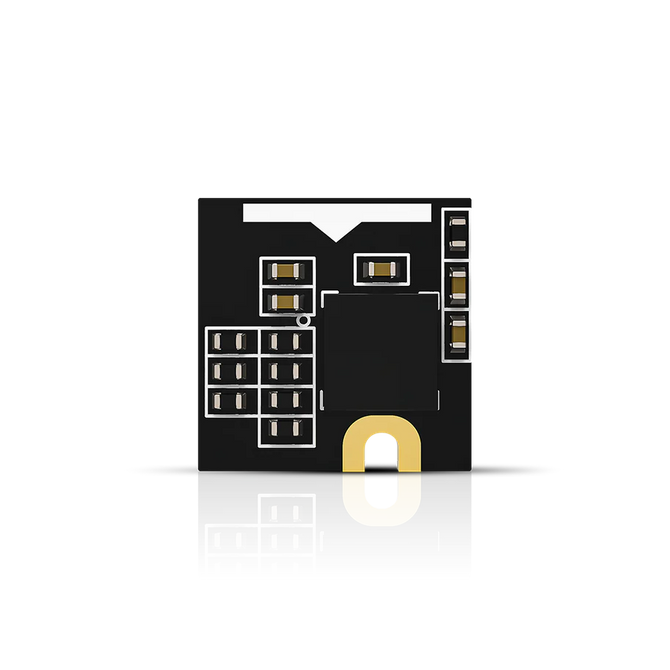

RAKwireless RAK12025

RAK12025 is a gyroscope module, part of the RAKWireless WisBlock Sensor series. The module is based on I3G4250D from STMicroelectronics. The I3G4250D is a low-power 3-axis angular rate sensor able to provide unprecedented stability at a zero-rate level and sensitivity over temperature and time. It includes a sensing element and a digital interface capable of providing the measured angular rate. With I3G4250D, RAK12025 can measure rotation speed and report data through a standard I2C digital interface.

Key features:

• Gyroscope module
• Selectable full scale: (245/500/2000 dps)
• I2C interface
• 16-bit rate value data output
• 8-bit temperature data output
• Module size: 10 x 10 mm
• Power Supply Voltage: 3.3 V
• Current Consumption: 5 uA - 6.1 mA
• Chipset: STMicroelectronics I3G4250D
