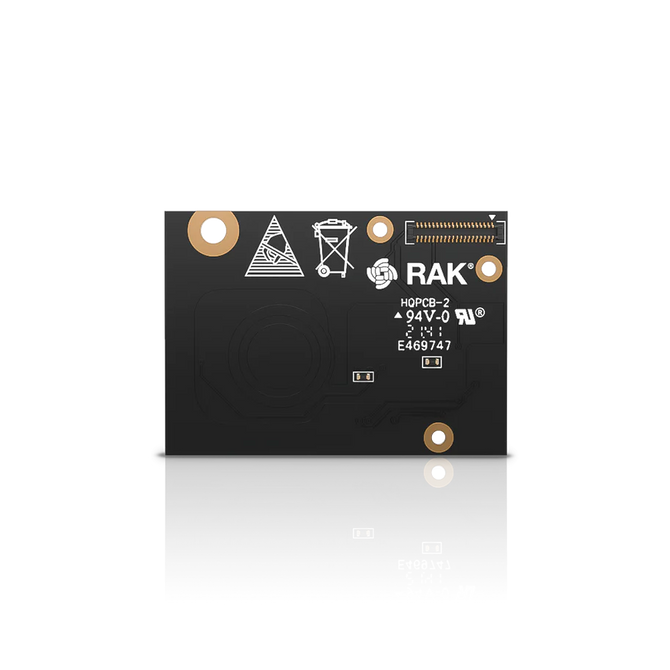

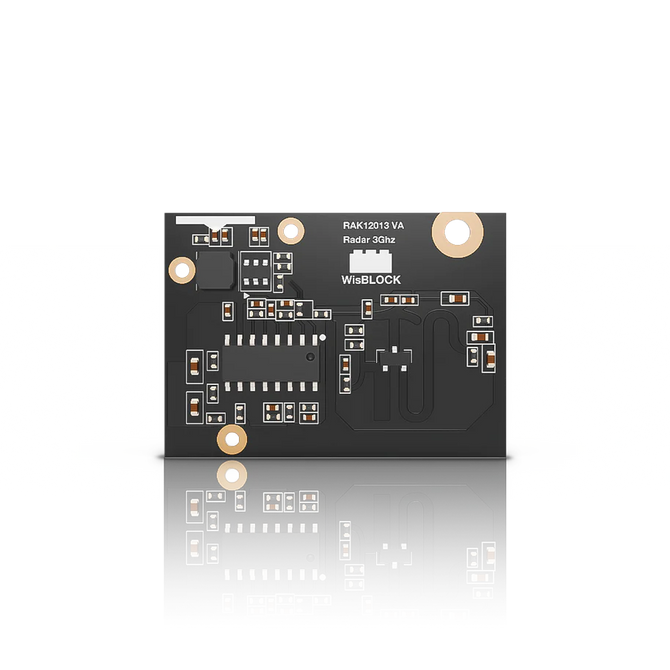

RAKwireless RAK12013

RAK12013 is a 3.2GHz microwave radar module based on RCWL-9196. It uses the Doppler radar effect to detect moving objects/motion using microwaves. The RCWL-9196 will transmit and receive a 3GHz radar signal and compare the difference between the two signals to determine whether the object is moving or not.

Key features:

• 3.3 V Power Supply
• Current Consumption: < 3 uA
• Chipset: RCWL RCWL-9196
• Motion Detection Module
• Detection Distance: 5 - 7 meters
• Detection Area: 360 degrees angle with no blind spot
• Frequency: 3.2 GHz
• Trigger Way: repeat trigger
• Module size: 25 x 35 mm
