Symbol
SKU: 315052
Producer code
5900000811291
Series
Chip

AMA3B1KK-KBR-B0
Semtech SX1262
Technology

LoRaWAN 1.0.3
BLE 5.0
Product length in millimeters

15.5
Product width in millimeters

15
Product height in millimetres

3.5
FLASH memory

1 MB
SRAM memory

348 KB
Number of pins

34
GPIO

6
UART interfaces
2
I2C interfaces
1
SPI interfaces
1
Temperature range

-40...+85°C
Voltage

1,8 - 3,6V
Firmware

RUI3

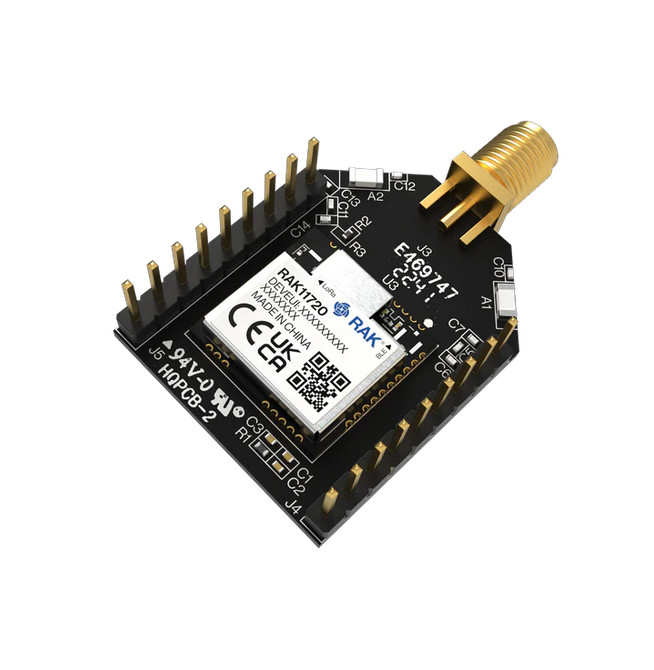

RAKwireless RAK11721-EU868 Breakout Board
The RAK11721 breakout board is based on the powerful AMA3B1KK-KBR-B0 MCU from Ambiq (aka Ambiq Apollo3) together with a Semtech SX1262 LoRa® transceiver. It is a perfect start to evaluate the RAK11720 stamp module.
- Compact Form Factor: 15 x 15.5 x 3.5 mm
- Based on AMA3B1KK-KBR-B0 and SX1262
- ARM Cortex-M4F
- 1 MB Flash and 348 KB SRAM
- LoRaWAN 1.0.3 specification compliant
- Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, and AS923-1/2/3/4
- LoRaWAN Activation by OTAA/ABP
- LoRa Point-to-Point (P2P) communication
- Custom firmware using Arduino via RUI3 API
- Easy-to-use AT Command set via UART interface
- I/O ports: UART/I2C/SPI/ADC/GPIO
- Long-range - greater than 10 km with optimized antenna
- Ultra-low-power consumption of 2.37 μA in sleep mode
- Supply Voltage: 1.8 V ~ 3.6 V
- Temperature range: -40° C ~ 85° C
Module features:
- RAK11721 Breakout Board
- 1x LoRa® antenna
- 18x Dupont cable
The kit includes:
