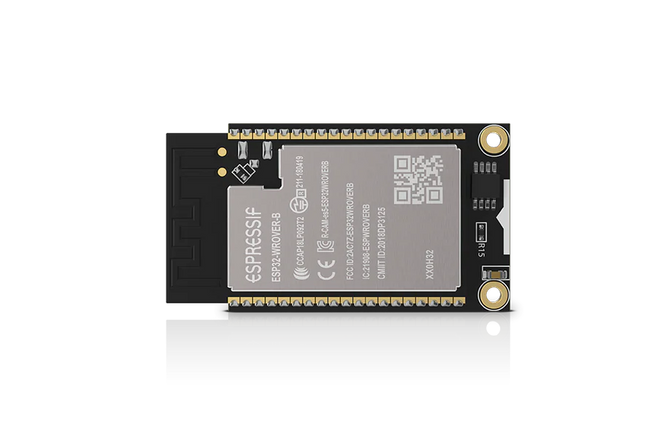

RAKwireless RAK11200 Voice Processing

RAK11200 is a WisBlock Core module for RAK WisBlock based on Espressif ESP32-WROVER. It is a powerful, generic WiFi-BLE MCU module that targets a wide variety of applications. There are two CPU cores that can be individually controlled and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The low-power deep-sleep current consumption of the ESP32-WROVER is about 10 uA. This makes the RAK11200 an ultra-low-power communication solution. RAK11200 can be comfortably programmed with the Arduino™ IDE or PlatformIO.

Key features:

• Two low-power Xtensa® 32-bit LX6 microprocessors
• Up to 240 MHz CPU clock
• Built-in PCB antenna
• 4 MB External SPI Flash, 520 KB RAM
• 8 MB SPI Pseudo static RAM (PSRAM)
• WiFi 802.11 b/g/n (802.11n up to 150 Mbps)
• Bluetooth v4.2 BR/EDR and BLE specification
• Rich set of peripherals: RTC, UART, I2C, SPI, SD card interface
• Low-power deep-sleep mode
• Chipset: Espressif ESP32-WROVER
