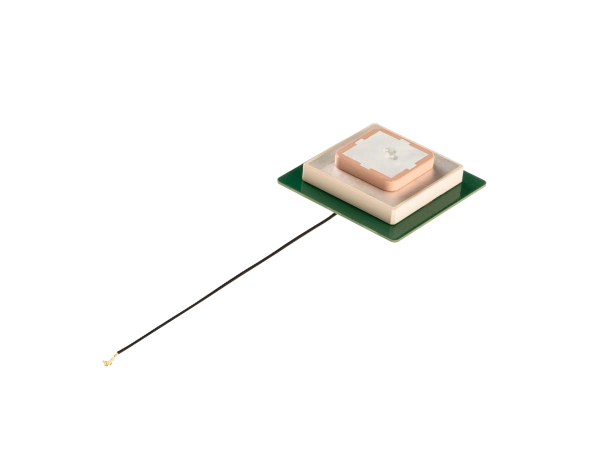

Quectel YFGC007E3A - GNSS antenna

Quectel YFGC007E3A - GNSS antenna

Antenna connector typeIPEX MHF 1
MountingBuckle
Antenna typeCeramic
Cable length (in milimeters)100
TechnologyGNSS
PositioningInternal
Size
uniwersalny
excl. VAT
11,52 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product data sheet - YFGC007E3A
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YFGC007E3A
Antenna connector typeAntenna connector type
IPEX MHF 1
MountingMounting
Buckle
Antenna typeAntenna type
Ceramic
Cable length (in milimeters)
100
TechnologyTechnology
GNSS
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
50
Product width in millimetersProduct width in millimeters
50
Product height in millimetresProduct height in millimetres
14.5
Temperature rangeTemperature range
-40...+85°C
Frequency
1164 - 1189 MHz
1559 - 1606 MHz
Max. VSWR
1,38
Max. gain
1,23 dBi
Polarisation
RHCP
Radiation pattern
Directional
Impedance
50 Ohm
Search

Quectel YFGC007E3A

YFGC007E3A is a ceramic embedded antenna from Quectel, supporting GNSS navigation systems, screw or buckle mounted. It supports frequencies from 1164–1189 MHz, 1559–1606 MHz range. The antenna dimensions 50 × 50 × 14,5 mm, cable 100 mm, IPEX MHF 1 connector. The operating temperature of the device covers the range -40...+85°C.
