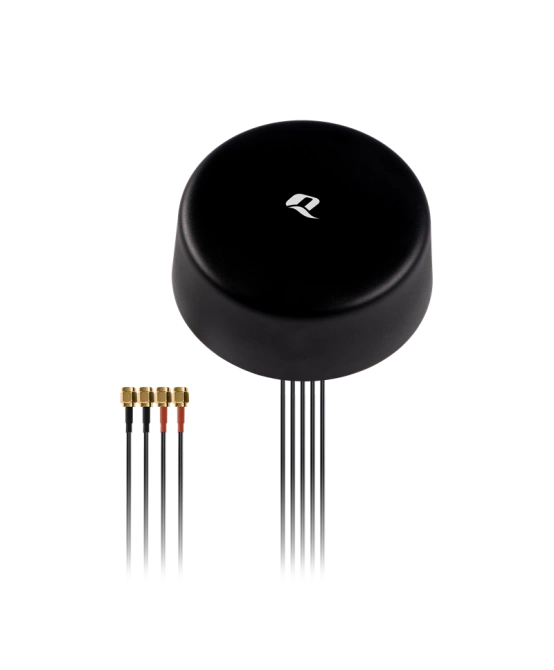

Quectel YEMN400J1AH - 5G antenna

Quectel YEMN400J1AH - 5G antenna

Antenna connector typeSMA male
Cable length (in milimeters)300
MountingScrew
Technology5G - Sub-6 GHzGNSS
PositioningExternal
Size
uniwersalny
excl. VAT
48,49 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YEMN400J1AH
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YEMN400J1AH
Antenna connector typeAntenna connector type
SMA male
Cable length (in milimeters)
300
MountingMounting
Screw
TechnologyTechnology
5G - Sub-6 GHz
GNSS
PositioningPositioning
External
Product diameter in millimetresProduct diameter in millimetres
103.5
Product height in millimetresProduct height in millimetres
42.5
Temperature rangeTemperature range
-40...+85°C
Ingress ProtectionIngress Protection
IP67
IP69K
Frequency
600 - 960 MHz
1400 - 6000 MHz
Max. VSWR
9,2
Max. gain
6,2 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

Quectel YEMN400J1AH

YEMN400J1AH is an external antenna from Quectel, optimized for 5G, screw mounted. It works on frequencies from 600–960 MHz, 1400–6000 MHz ranges. Product dimensions are Φ 103.5 mm × 42.5 mm, 300 mm cable with male SMA connectors. Ingresss protection IP67 and IP69K. The operating temperature range of the antenna is -40...+85°C.
