Details
Parametry
Find similar products
Brand
Symbol
YEGN001Q1A
Antenna connector type
SMA male
Cable length (in milimeters)
3000
Mounting
Bracket
Technology
GNSS
Positioning
External
Product length in millimeters
55.2
Product width in millimeters
48
Product height in millimetres
20.5
Temperature range
-40...+85°C
Frequency
1559 - 1606 MHz
1164 - 1189 MHz
Max. VSWR
1,46
Max. gain
1,19 dBi
Polarisation
RHCP
Radiation pattern
Directional
Impedance
50 Ohm
Ingress Protection
IP67
Quectel YEGN001Q1A

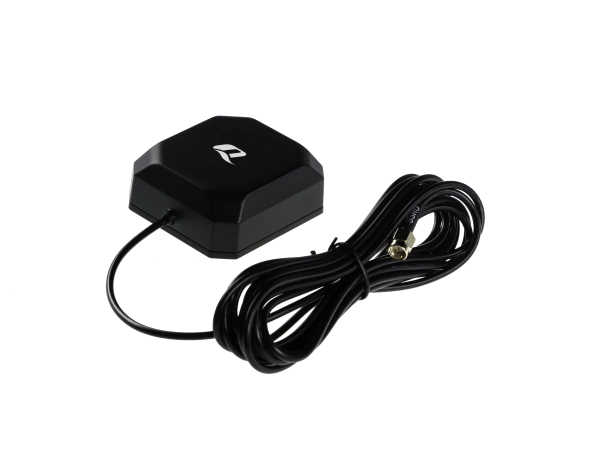

YEGN001Q1A is an external antenna from Quectel, supporting GNSS navigation systems, bracket mounted. It works on frequencies from the 1164–1189 MHz, 1559–1606 MHz ranges. Product dimensions are 55.2 × 48 × 20.5 mm, cable 3000 mm, with a male type SMA connector.
