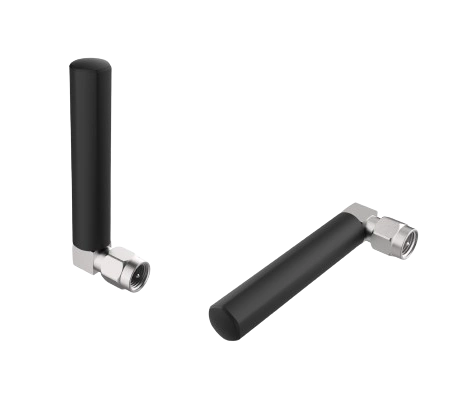

Quectel YECT001W1AM - 5G antenna

Quectel YECT001W1AM - 5G antenna

Antenna connector typeSMA male
MountingTerminal
Technology5G - Sub-6 GHz
PositioningExternal
Size
uniwersalny
excl. VAT
2,69 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YECT001W1AM
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YECT001W1AM
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Terminal
TechnologyTechnology
5G - Sub-6 GHz
PositioningPositioning
External
Product length in millimetersProduct length in millimeters
52,6
Product width in millimetersProduct width in millimeters
18,6
Product height in millimetresProduct height in millimetres
9
Temperature rangeTemperature range
-40...+85°C
Frequency
700 - 960 MHz
1710 - 2690 MHz
3300 - 6000 MHz
Max. VSWR
6,9
Max. gain
2,9 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Ingress ProtectionIngress Protection
IP53
Search

Quectel YECT001W1AM

YECT001W1AM is an external antenna from Quectel, supporting 5G standard, with a male-type SMA connector. It supports frequencies from 700–960 MHz, 1710–2690 MHz, 3300–6000 MHz range. Product dimensions are 52.6 × 18.6 × 9 mm. The operating temperature range of the antenna is -40...+85°C.
