Quectel YECN001J1A - 5G antenna

Quectel YECN001J1A - 5G antenna

Antenna connector typeSMA male
Cable length (in milimeters)300
MountingScrew
Technology5G - Sub-6 GHz
PositioningExternal
Size
uniwersalny
excl. VAT
16,92 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YECN001J1A
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YECN001J1A
Antenna connector typeAntenna connector type
SMA male
Cable length (in milimeters)
300
MountingMounting
Screw
TechnologyTechnology
5G - Sub-6 GHz
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
104
Product diameter in millimetresProduct diameter in millimetres
40,6
Temperature rangeTemperature range
-40...+85°C
Frequency
600 - 960 MHz
1400 - 2690 MHz
3300 - 6000 MHz
Max. VSWR
7,1
Max. gain
8,3 dBi
Radiation pattern
Omni-directional
Polarisation
Vertical
Impedance
50 Ohm
Ingress ProtectionIngress Protection
IP67
IP69K
Search

Quectel YECN001J1A

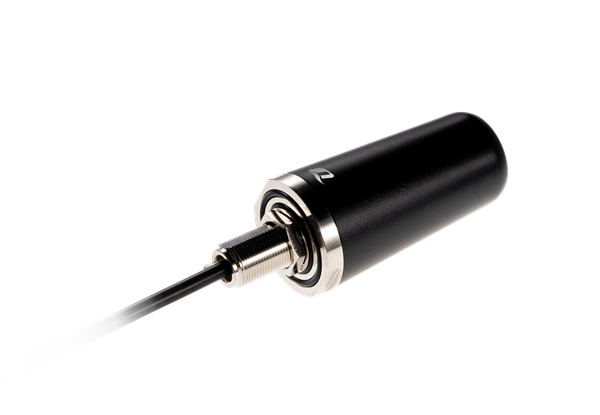

YECN001J1A is an external antenna from Quectel, optimized to support 5G, screw mounted. It works on frequencies from the 600–960 MHz, 1400-2690 MHz, 3300-6000 MHz ranges. Product dimensions are Φ 40.6 mm × 104 mm, with an male SMA type connector. Ingresss protection IP67 and IP69K.
