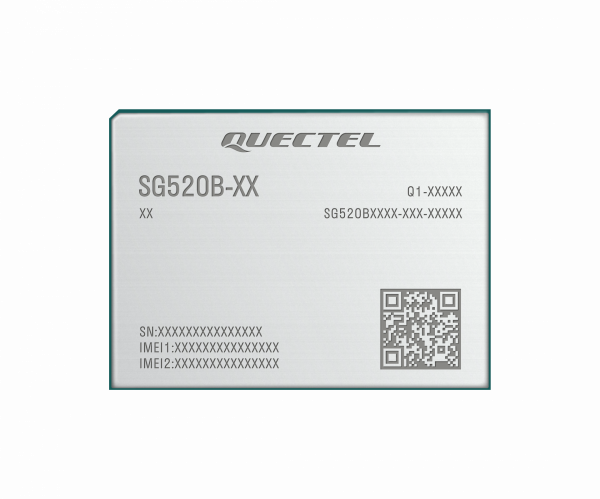

Quectel SG520B - Smart module
Form factorLGA
ProcessorQCM4490
Memory64 GB + 4 GB
Product width in millimeters42.5
Product length in millimeters56.5
Operating systemAndroid 13Details
Parametry
Find similar products
Brand
Symbol
SG520BEM81PA-4U64-UGADA
Producer code
5900000836805
Form factor
LGA
Max. data transfer
900 Mbps (UL) SA
2,5 Gbps (DL) NSA
Technology
5G - Sub-6 GHz
LTE-A
BT 5.2
WiFi 6
UMTS
GSM
GNSS
Fallback
4G
3G
2G
Processor
QCM4490
Memory
64 GB + 4 GB
Temperature range
-35...+75°C
Product height in millimetres
2.95
Product width in millimeters
42.5
Product length in millimeters
56.5
GPIO
35
Operating system
Android 13
Quectel SG520B
A Smart module by Quectel, with LGA form factor, supporting 5G with max data rate: 2.5 Gbps (DL), 900 Mbps (UL). Fallback in 4G, 3G and 2G. The module features Bluetooth 5.2, WiFi 6E and GNSS (GPS/ GLONASS/ BDS/ NavIC/ Galileo/ QZSS/ SBAS; L1 + L5) navigation support.
-
Supports frequency bands:
- Bt: 5.2
- WLAN: 2.4/ 5/ 6 GHz 802.11a/ b/ g/ n/ ac/ ax, supports 2 × 2 MU-MIMO
The product can operate in temperature range of -35... +75°C.
