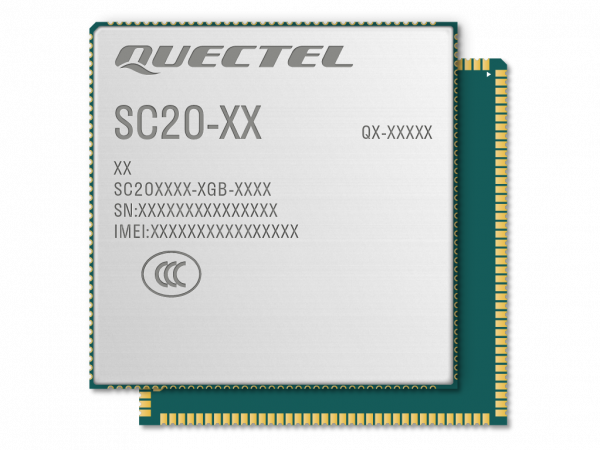

Quectel SC20-EX 512+512 - Smart module

Quectel SC20-EX 512+512 - Smart module

Form factorLCC+LGA
TechnologyLTEBT 4.2UMTSWiFi 4GSMGNSS
ProcessorQualcomm MSM8909-2
Memory512 MB + 512 MB
Product width in millimeters40.5
Product length in millimeters40.5
Operating systemYocto Linux
Technology
Memory
Operating system
Size
uniwersalny
excl. VAT
217,08 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - SC20
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
SC20EXPA-512-UGND
Producer code
5900000816883
Series
Smart - LCC+LGA - SC20
Form factorForm factor
LCC+LGA
CategoryCategory
Cat 4
Max. data transferMax. data transfer
150 Mbps (DL)
50 Mbps (UL)
TechnologyTechnology
LTE
BT 4.2
UMTS
WiFi 4
GSM
GNSS
FallbackFallback
3G
2G
ProcessorProcessor
Qualcomm MSM8909-2
MemoryMemory
512 MB + 512 MB
Temperature rangeTemperature range
-35...+75°C
Product height in millimetresProduct height in millimetres
2.8
Product width in millimetersProduct width in millimeters
40.5
Product length in millimetersProduct length in millimeters
40.5
VoltageVoltage
3,5 - 4,2V
UART interfaces
2
USB interfaces
1x 2.0
I2C interfaces
3
SPI interfaces
1
USIM interface
2
GPIOGPIO
25
Operating systemOperating system
Yocto Linux
Search

Quectel SC20-EX

A Smart module by Quectel, with LCC+LGA form factor, supporting LTE standards of communication with fallback in 3G and 2G. Max data rate: 150Mbps (DL), 50Mbps (UL). The module also supports Bluetooth 4.2 and WiFi 4 communication as well as GNSS navigation (GPS/BDS/GLONASS). Equipped with 512MB NAND+ 512MB DDR2 of embedded memory.

    Supports frequency bands:
  • LTE-FDD: B1/B3/B5/B7/B8/B20
  • LTE-TDD: B38/B40/B41
  • WCDMA: B1/B5/B8
  • GSM/EDGE: 850/900/1800/1900 MHz
  • BT: BT 2.1+EDR/3.0/4.1 LE/4.2 BLE
  • Wi-Fi: 2.4/5 GHz, 802.11a/b/g/n
  • Bandwidth: 1.4/3/5/10/15/20 MHz

The product can operate in temperature range of -35... +75°C, and it's power supply is 3.5 - 4.3V, typ. 3.8V. SC20-E LTE-TDD B41 does not support full-frequency and the bandwith of it is 2555-2655MHz.
