Quectel RM505Q-AE - 5G module
Form factorM.2
Max. data transfer650 Mbps (UL) NSA2,5 Gbps (DL) NSA
Technology5G - Sub-6 GHzGNSSLTE-AUMTS
Product width in millimeters30
Product length in millimeters52
RegionGlobalLog in
Details
Parametry
Find similar products
Brand
Symbol
RM505QAEAA-M20-SGASA
Series
Form factor
M.2
Max. data transfer
650 Mbps (UL) NSA
2,5 Gbps (DL) NSA
Technology
5G - Sub-6 GHz
GNSS
LTE-A
UMTS
Fallback
4G
3G
Temperature range
-30...+75°C
Product height in millimetres
2.3
Product width in millimeters
30
Product length in millimeters
52
Voltage
3,135 - 4,4V
Region
Global

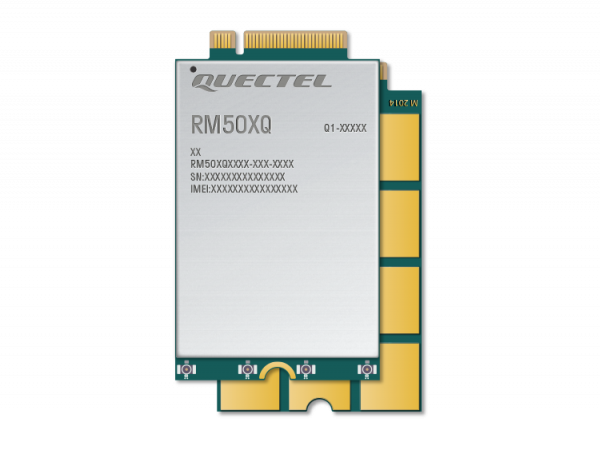

Quectel RM505Q-AE
A 5G module by Quectel, with M.2 form factor, supporting max data rate: 2.1 Gbps (DL), 450 Mbps (UL) in SA mode and 2.5 Gbps (DL), 650 Mbps (UL) in NSA mode. Fallback in 4G and 3G. The module also features GNSS (GPS/GLONASS/BDS/Galileo) navigation support.
-
Supports frequency bands:
- 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
- WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
The product can operate in temperature range of -30... +75°C, and it's power supply is 3.135 - 4.4V, typ. 3.7V.
