Quectel RG520N-EU-TE-A

5G evaluation kit, with RG520N-EU module on an adapter board, created by Quectel.

RG520N-EU is a 5G module by Quectel, with LGA form factor, supporting max data rate: 2.4 Gbps (DL), 900 Mbps (UL) in SA mode and 3.4 Gbps (DL), 550 Mbps (UL) in NSA mode. Fallback in 4G and 3G. The module also features support for GNSS navigation (GPS/GLONASS/BDS/Galileo/QZSS). This model has ~4GB of LPDDR4/X RAM and ~4GB of eMMC memory, as well as extra paths: 2 for the B32 CA band + 4 for the smart antenna

Supports frequency bands:
• 5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
• 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
• LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
• LTE-TDD: B38/B40/B41/B42/B43
• WCDMA: B1/B5/B8

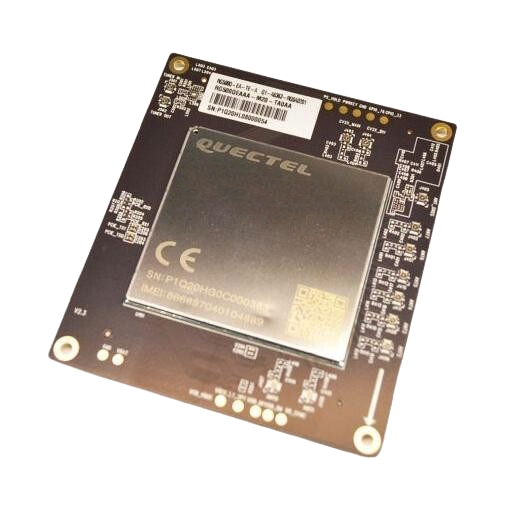

The photo is for illustrative purposes only.
